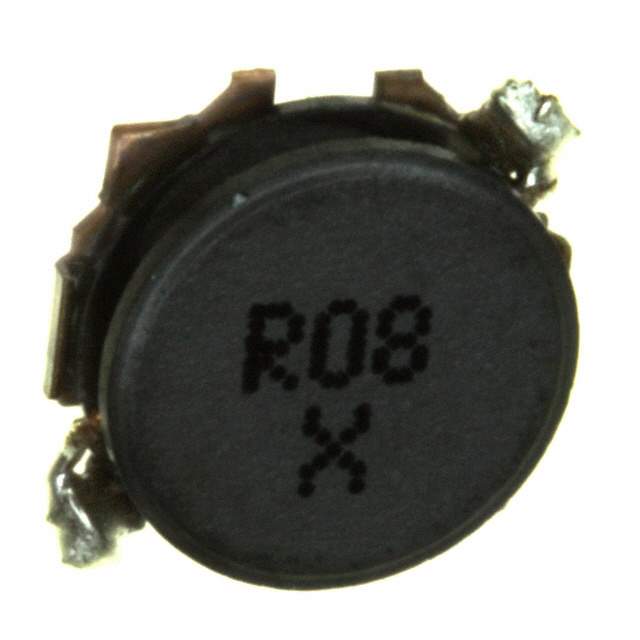

ELL6PG6R8N

Name: ELL6PG6R8N
Brand: Panasonic
SKU: 1167010
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ELL6PG6R8N
Manufacturer	Panasonic
Catalog	Fixed Inductors
Description	Power Choke Shielded Wirewound 6.8uH 30% 100KHz 1.6A 0.07Ohm DCR 2424 T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Case / Package	2424
Composition	Wirewound
Current Rating	1.6 A
DC Resistance (DCR)	70 mΩ
Depth	6.3 mm
Height	2 mm
Height - Seated (Max)	2.0066 mm
Inductance	6.8 µH
Inductance Tolerance	30 %
Length	6 mm
Max DC Current	1.6 A
Mount	Surface Mount
Number of Pins	2
Packaging	Cut Tape
Radiation Hardening	No
REACH SVHC	No SVHC
Resistance	70 mΩ
RMS Current (Irms)	1.6 A
RoHS	Compliant
Saturation Current	1.4 A
Schedule B	8504500000, 8504500000
Self Resonant Frequency	100 kHz
Shielding	Shielded
Termination	SMD/SMT
Test Frequency	100 kHz
Tolerance	30 %
Width	6 mm
Win Source Part Number	1167010-ELL6PG6R8N
Categories	Fixed Inductors
Manufacturer	Panasonic
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian ELL6PG6R8N CAD Model

Alternative Products

Description

This inductor has a shielding feature and is rated for a current rating of 1.6 A. This Panasonic inductor has an inductance of 6.8 µH and a DC resistance (DCR) of 70 mΩ.

Current Rating: 1.6 A
Inductance: 6.8 µH
DC Resistance (DCR): 70 mΩ
Package Type: 2424
Termination: SMD/SMT
Height: 2.0066 mm
Width: 6 mm
Length: 6 mm
Depth: 6.3 mm
Tolerance: 30%
Temperature Range: -40 °C to 85 °C
RMS Current (Irms): 1.6 A
Saturation Current: 1.4 A
