Same model may have multiple batches, images only for reference.

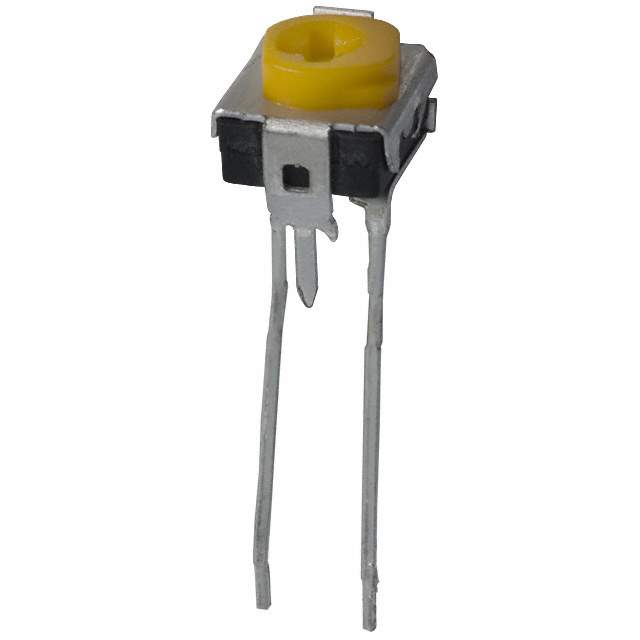

EVN-DJAA03B55 Real Image
Same model may have multiple batches, images only for reference.

EVN-DJAA03B55

Part No EVN-DJAA03B55
Manufacturer Panasonic
Catalog Potentiometers, Variable Resistors
Description TRIMMER 500K OHM 0.1W PC PIN TOP  /  500 kOhms 0.1W, 1/10W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
Datasheet
EVN-DJAA03B55 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr Panasonic Electronic Components
Series EVN
Package Cut Tape (CT),Tape & Box (TB)
Product Status Obsolete
Resistance 500 kOhms
Power (Watts) 0.1W, 1/10W
Tolerance ±30%
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Carbon
Mounting Type Through Hole
Termination Style PC Pins
Dimension Rectangular - 0.264" x 0.252" Face (6.70mm x 6.40mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Other Names DJA55TB,DJA55CT,DJA55CT-NDR,DJA55TB-NDR,EVNDJAA03B55
Standard Package 1,000
Win Source Part Number 992321-EVN-DJAA03B55
Ultra Librarian 3D Model Ultra Librarian EVN-DJAA03B55 CAD Model

Description

The Panasonic Electronic Components trimmer potentiometer with Win Source Part Number 992321-EVN-DJAA03B55 is a through-hole mounting potentiometer with a resistance of 500 kOhms and a power rating of 0.1W.

  • Mounting Type: Through-Hole
  • Resistance: 500 kOhms
  • Power Rating: 0.1W
  • Tolerance: ±30%
  • Number of Turns: 1
  • Operating Temperature: -55°C to 125°C
  • Dimension: Rectangular dimension of 0.264" x 0.252" Face (6.70mm x 6.40mm)
