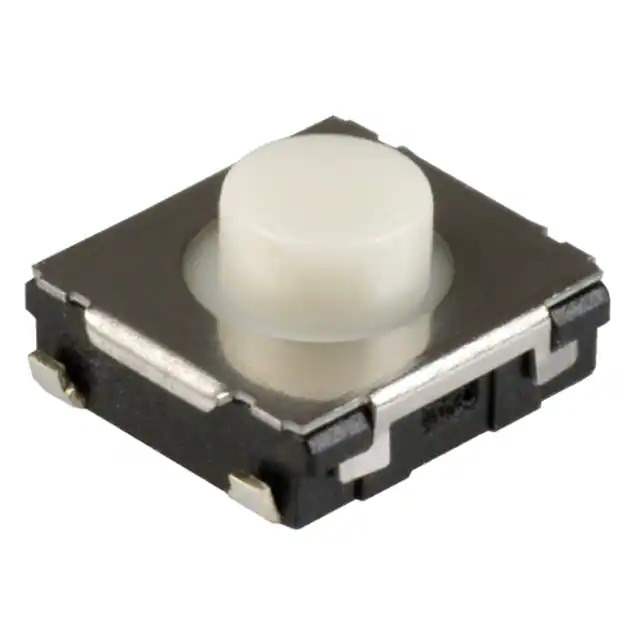

EVQ-Q2Y03W Real Image
Same model may have multiple batches, images only for reference.

EVQ-Q2Y03W

Part No EVQ-Q2Y03W
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.02A 15V / Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Panasonic
Series EVQQ2
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 3.10mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 6.50mm x 6.00mm
Illumination Non-Illuminated
Operating Force 350gf
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Base Product Number EVQ-Q2
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 871304-EVQ-Q2Y03W
Ultra Librarian 3D Model Ultra Librarian EVQ-Q2Y03W CAD Model

Description

The EVQQ2 series EVQ-Q2Y03W tactile switch from Panasonic is a surface mount switch with a J lead termination style.

  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Standard
  • Switch Travel: 0.25mm
  • Operating Force: 350gf
  • Mechanical Life: 100,000 cycles
  • Operating Temperature: -40°C to 85°C
  • Illumination: Non-Illuminated
  • Outline: 6.50mm x 6.00mm
  • Package: Tape & Reel
  • Standard Package: 2,000 pcs
