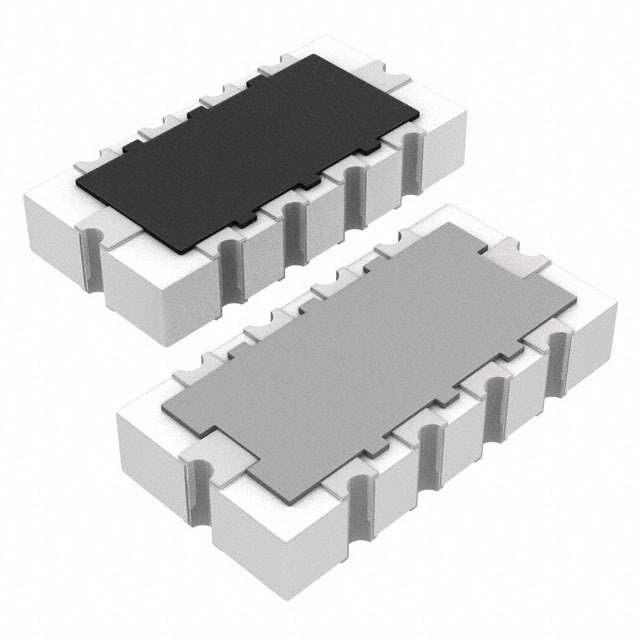

EZA-DT61AAAJ Real Image
Same model may have multiple batches, images only for reference.

EZA-DT61AAAJ

Part No EZA-DT61AAAJ
Manufacturer Panasonic
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 1 KOHM/22PF SMD
Datasheet
EZA-DT61AAAJ Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 1st
Technology RC (Pi)
Number of Channels 4
Resistance - Channel (Ohms) 1k
Values R = 1 kOhms, C = 22pF
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 12V
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height 0.033" (0.85mm)
Win Source Part Number 103602-EZA-DT61AAAJ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EZA-DT61AAAJ CAD Model

Description

Description

The EZA-DT61AAAJ component offers a unique blend of performance and versatility, ideal for both simple and complex electronic applications. Its integration potential makes it a staple in modern electronics design.

Features and Benefits

  • Supports a wide range of voltages for flexibility in use.
  • Highly integrable with various systems and technologies.
  • Compact size saves space in device engineering.

Applications and Projects

  • Smart Home Devices: Powers intelligent control systems.
  • Renewable Energy Systems: Facilitates efficient energy conversion.
  • Embedded Systems: Suitable for embedded computing.
