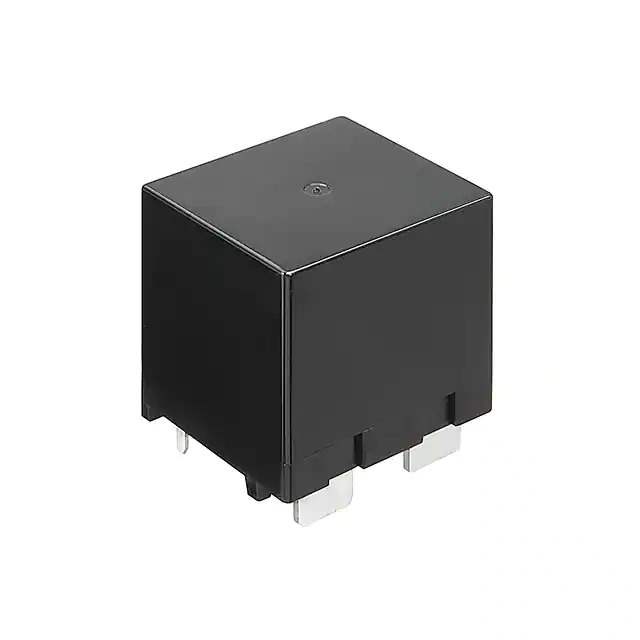

HE1AN-P-DC12V-Y5 Real Image
Same model may have multiple batches, images only for reference.

HE1AN-P-DC12V-Y5

Part No HE1AN-P-DC12V-Y5
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 48A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series HE-PV
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 48 A
Switching Voltage 490VAC, 48VDC - Max
Coil Current 160 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 30 ms
Release Time 10 ms
Temperature Range - Operating -50°C ~ 55°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 75 Ohms
Base Product Number HE1AN
Standard Package 25 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 873482-HE1AN-P-DC12V-Y5
Ultra Librarian 3D Model Ultra Librarian HE1AN-P-DC12V-Y5 CAD Model

Description

The HE1AN-P-DC12V-Y5 is a power relay from Panasonic's HE-PV series.

  • Termination Style: PC pin
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver nickel (AgNi)
  • Coil Resistance: 75 Ohms
  • Coil Current: 160 mA
  • Operate Time: 30 ms
  • Release Time: 10 ms
  • Coil Voltage: 12VDC
  • Contact Rating: 48 A
  • Switching Voltage: 490VAC, 48VDC (max)
  • Mounting Type: Through-hole
  • Operating Temperature: -50°C to 55°C
