Same model may have multiple batches, images only for reference.

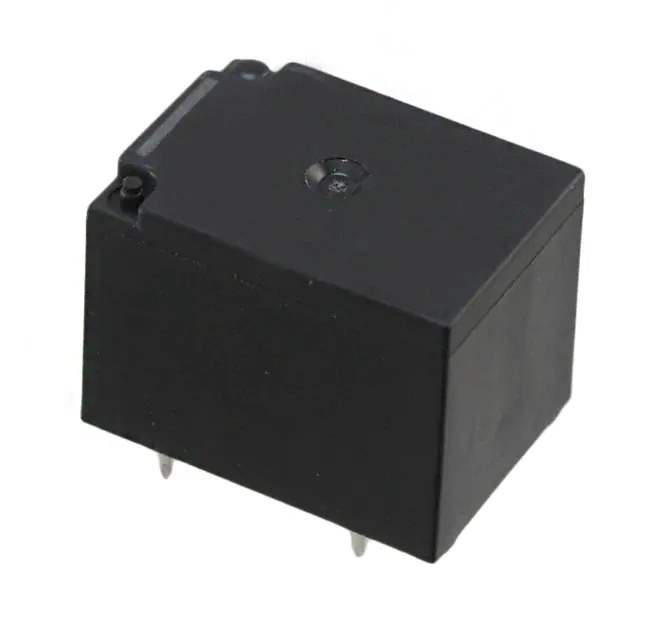

JS1-12V Real Image
Same model may have multiple batches, images only for reference.

JS1-12V

Part No JS1-12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 12V / General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series JS
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 100VDC - Max
Coil Current 30 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 400 Ohms
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 849288-JS1-12V
Ultra Librarian 3D Model Ultra Librarian JS1-12V CAD Model

Description

The 849288-JS1-12V is a power relay designed for various applications in the electronics industry.

  • Series: JS
  • Termination Style: PC Pin
  • Contact Form: SPDT
  • Contact Material: Silver Alloy
  • Contact Rating: 10A
  • Coil Voltage: 12VDC
  • Coil Resistance: 400 Ohms
  • Operate Time: 10ms
  • Release Time: 10ms
  • Seal: Fully Sealed
  • Temperature Range: -40°C to 70°C
  • Manufacturer: Panasonic
