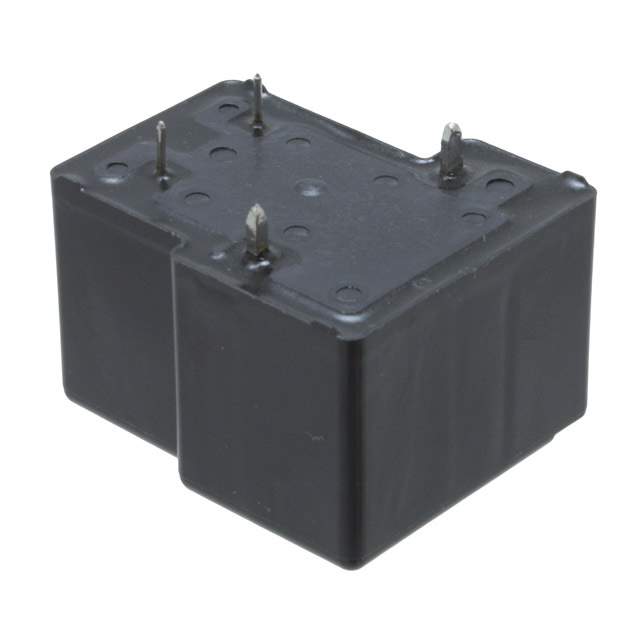

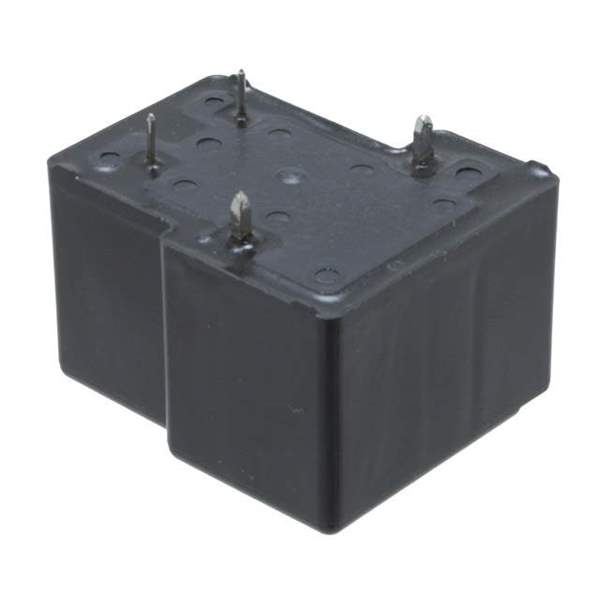

JTN1S-PA-F-DC24V Real Image
Same model may have multiple batches, images only for reference.

JTN1S-PA-F-DC24V

Part No JTN1S-PA-F-DC24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 20A 24V / General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series JT-N
Package Tray
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 20 A
Switching Voltage 277VAC - Max
Coil Current 33.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 20 ms
Release Time 10 ms
Temperature Range - Operating -55°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 720 Ohms
Base Product Number JTN1S
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names Q3717052,255-1878,JTN1S-PA-F-DC24V-ND,JTN1S-PA-F-DC24V-NDR,JTN1SPAFDC24V
Standard Package 50
Win Source Part Number 1007349-JTN1S-PA-F-DC24V
Ultra Librarian 3D Model Ultra Librarian JTN1S-PA-F-DC24V CAD Model

Description

The Panasonic Electric Works JT-N series power relay is a general-purpose relay with a contact rating of 20 A. It is from Panasonic Electric Works.

  • Series: JT-N
  • Contact Rating: 20 A
  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Coil Voltage: 24VDC
  • Latching: Non-Latching
  • Mounting Type: Through-Hole
  • Operating Temperature: -55°C to 85°C
  • Seal Rating: Sealed, Fully Rated
  • Coil Insulation Class: F
  • Must Operate Voltage: 18 VDC
  • Must Release Voltage: 2.4 VDC
