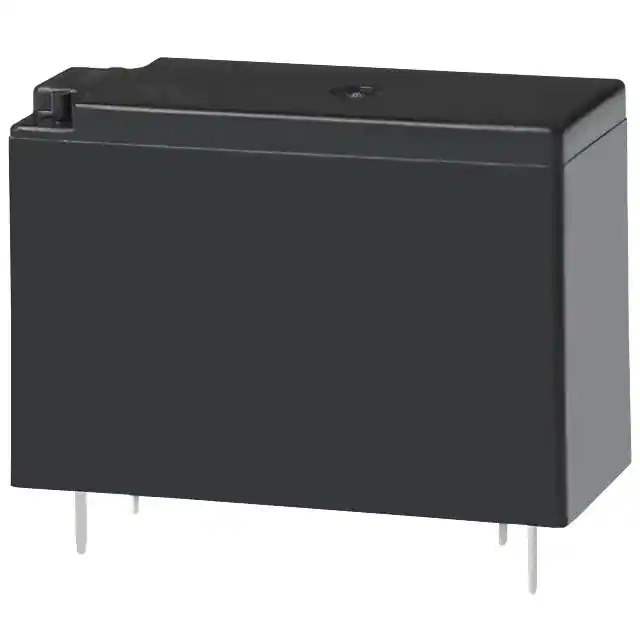

JW1AFHN-DC24V-F Real Image
Same model may have multiple batches, images only for reference.

JW1AFHN-DC24V-F

Part No JW1AFHN-DC24V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series JW
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 22 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class E
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 1.1 kOhms
Base Product Number JW1AFHN
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 731597-JW1AFHN-DC24V-F
Ultra Librarian 3D Model Ultra Librarian JW1AFHN-DC24V-F CAD Model

Description

The JW series power relay by Panasonic, with the part number 731597-JW1AFHN-DC24V-F, is a high-quality relay suitable for various applications.

  • Relay Type: SPST-NO (1 Form A)
  • Contact Rating: 10 A
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Coil Voltage: 24VDC
  • Coil Current: 22 mA
  • Operate Time: 15 ms
  • Release Time: 5 ms
  • Sealed: Flux Protection
  • Operating Temperature Range: -40°C to 60°C
  • Mounting Style: Through Hole
