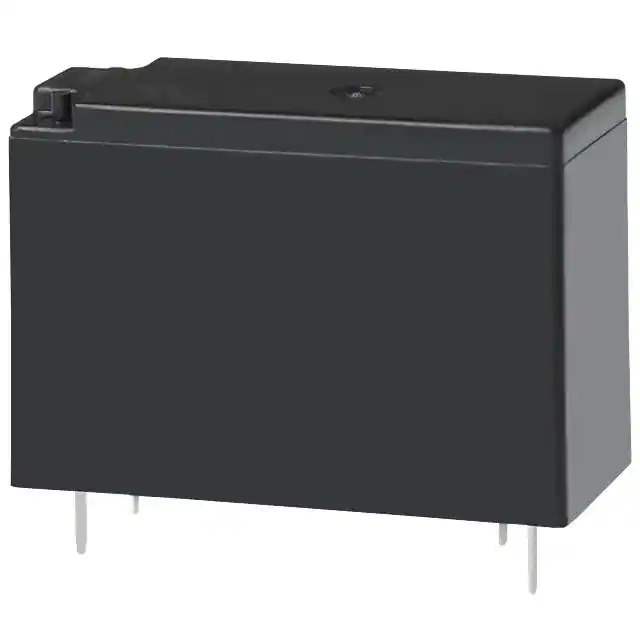

JW1AFSN-DC9V-F Real Image
Same model may have multiple batches, images only for reference.

JW1AFSN-DC9V-F

Part No JW1AFSN-DC9V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 9V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series JW
Package Tray
Product Status Active
Mounting Type Through Hole
Coil Voltage 9VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 58 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 6.3 VDC
Must Release Voltage 0.9 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 155 Ohms
Base Product Number JW1AFSN
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 876248-JW1AFSN-DC9V-F
Ultra Librarian 3D Model Ultra Librarian JW1AFSN-DC9V-F CAD Model

Description

The JW1AFSN-DC9V-F is a power relay from the JW series manufactured by Panasonic.

  • Termination Style: PC Pin
  • Package Type: Tray
  • Contact Form: SPST-NO (1 Form A)
  • Application: General-Purpose
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Coil Voltage: 9VDC
  • Coil Resistance: 155 Ohms
  • Coil Current: 58 mA
  • Contact Rating: 10 A
  • Switching Voltage: AC and DC
  • Release Time: 5 ms
  • Operate Time: 15 ms
  • Protection: Sealed
  • Temperature Range: -40°C to 60°C
