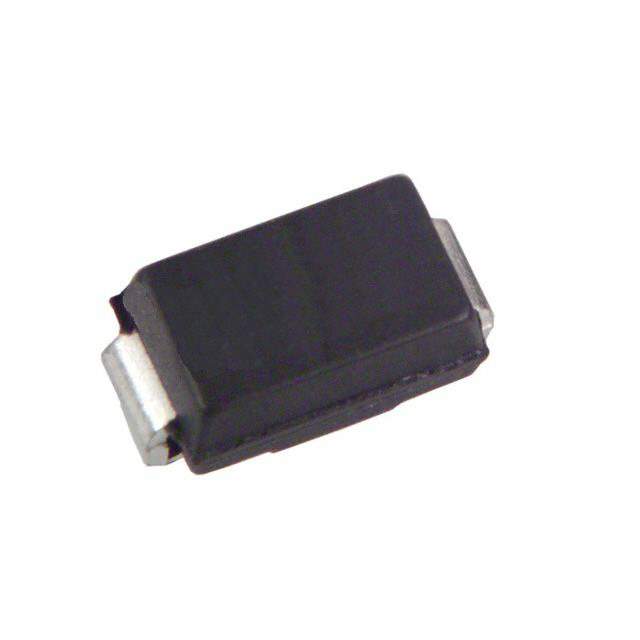

MA739-(TX) Real Image
Same model may have multiple batches, images only for reference.

MA739-(TX)

Part No MA739-(TX)
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 90V 700MA NMINIP2
Datasheet
MA739-(TX) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 90V
Current - Average Rectified (Io) 700mA
Voltage - Forward (Vf) (Max) @ If 800mV @ 700mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 100ns
Current - Reverse Leakage @ Vr 1mA @ 90V
Capacitance @ Vr, F 50pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package NMiniP2-J1
Operating Temperature - Junction -40°C to 125°C
Win Source Part Number 073173-MA739-(TX)
Ultra Librarian 3D Model Ultra Librarian MA739-(TX) CAD Model

Description

The Panasonic Electronic Components MA739-(TX) is a Schottky diode type.

  • Voltage-DC Reverse (Vr) (Max): 90V
  • Current-Average Rectified (Io): 700mA
  • Voltage-Forward (Vf) (Max) @ If: 800mV @ 700mA
  • Reverse Recovery Time (trr): 100ns
  • Current-Reverse Leakage @ Vr: 1mA @ 90V
  • Capacitance @ Vr, F: 50pF @ 10V, 1MHz
  • Operating Temperature: -40°C to 125°C
  • Packaging: Reel-TR
  • Product Status: Obsolete (EOL)
