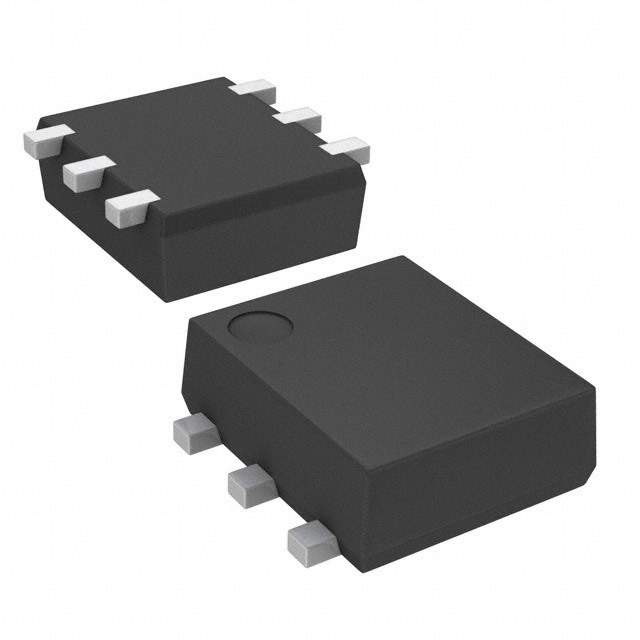

MTM861280LBF Real Image
Same model may have multiple batches, images only for reference.

MTM861280LBF

Part No MTM861280LBF
Manufacturer Panasonic
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 20V 1A WSSMINI6-F1
Datasheet
MTM861280LBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 1A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 4V
Gate-Source Threshold Voltage 1.5V @ 1mA
Max Input Capacitance 80pF @ 10V
Maximum Gate-Source Voltage ±12V
Power Dissipation (Max) 540mW (Ta)
Maximum Rds On at Id,Vgs 420 mOhm @ 500mA, 4V
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package WSSMini6-F1
Dimension 6-SMD, Flat Leads
Win Source Part Number 1109965-MTM861280LBF
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Portable Devices, Power Management, Industrial
Ultra Librarian 3D Model Ultra Librarian MTM861280LBF CAD Model

Description

The MTM861280LBF from Panasonic Electronic Components is a P-channel MOSFET with a maximum drain-source breakdown voltage of 20V and a maximum continuous drain current of 1A.

  • Manufacturer: Panasonic Electronic Components
  • Channel Type: P-Channel
  • Maximum Drain-Source Breakdown Voltage: 20V
  • Maximum Continuous Drain Current: 1A
  • On-Resistance: 420mΩ
  • Gate-Source Threshold Voltage: 1.5V
  • Package: 6-SMD, Flat Leads
  • Applications: Portable Devices, Power Management, Industrial Applications
