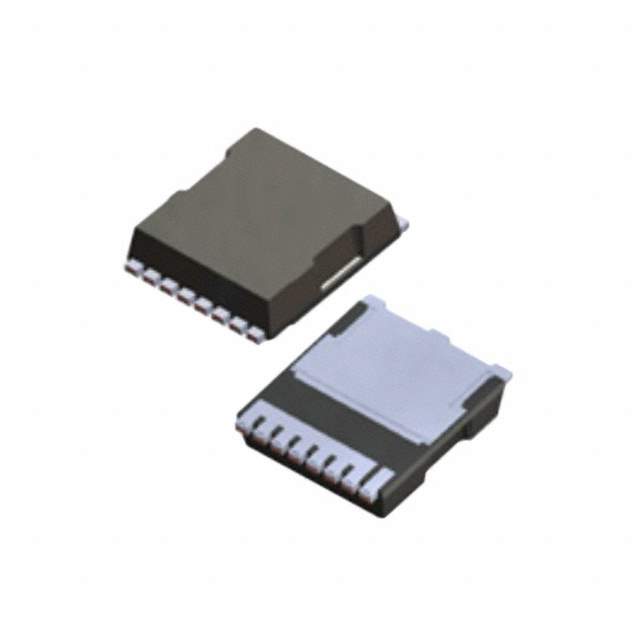

The ON Semiconductor FDBL0120N40 is a state-of-the-art N-Channel PowerTrench® MOSFET designed to deliver high efficiency and performance for a wide range of applications. This powerful MOSFET is an ideal choice for engineers looking to improve power density and efficiency in their designs, thanks to its low on-resistance and high switching speeds.

Key Features

• Low On-Resistance (R<sub>DS(on)): The FDBL0120N40 boasts an extremely low on-resistance, which results in minimal power loss during operation and enhances overall efficiency.
• High Current Capability: With a continuous drain current (I<sub>D) of up to 120A, this MOSFET can handle high current applications with ease.
• High Voltage Rating: The device is rated for a maximum drain-source voltage (V<sub>DSS) of 40V, making it suitable for a broad range of power applications.
• Fast Switching Performance: The fast switching characteristics of the FDBL0120N40 reduce switching losses and improve performance in high-frequency power conversion systems.
• PowerTrench® Technology: ON Semiconductor's proprietary PowerTrench® process technology minimizes on-state resistance while maintaining superior switching performance, which is critical for efficient power management.
• Robust Thermal Performance: The device's excellent thermal characteristics ensure reliability and longevity even under high temperature operating conditions.

Applications

The FDBL0120N40 is versatile and can be used in a variety of applications, including:

• DC/DC converters
• Power supply units (PSUs)
• Synchronous rectification
• Motor drives
• Automotive systems
• Renewable energy inverters

Reliability and Quality

ON Semiconductor is committed to providing high-quality products. The FDBL0120N40 is built to meet the stringent requirements of the industrial and automotive markets, ensuring reliability and performance even in the most challenging environments.
