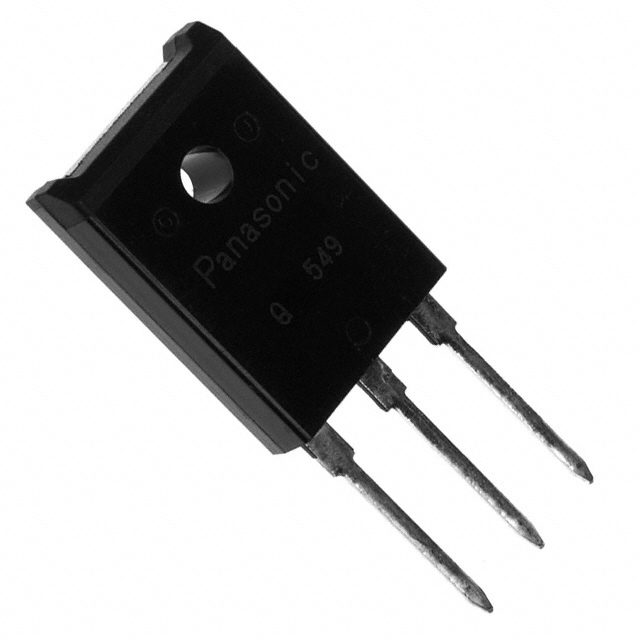

2SB11540Q Panasonic
Same model may have multiple batches, images only for reference.

2SB11540Q

Part No 2SB11540Q
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS PNP 80V 10A TOP-3F
Datasheet
2SB11540Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Bulk
Part Status Obsolete(EOL)
Transistor Type PNP
Current - Collector (Ic) (Maximum) 10A
Voltage - Collector Emitter Breakdown (Maximum) 80V
Vce Saturation (Maximum) @ Ib, Ic 1.5V @ 1A, 10A
Current - Collector Cutoff (Maximum) 10μA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce 90 @ 3A, 2V
Power - Max 3W
Frequency - Transition 30MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TOP-3F
Manufacturer Package TOP-3F-A1
Win Source Part Number 762470-2SB11540Q
Popularity Medium
Supply and Demand Status Limited
Family Name 2SB1154
Introduction Date March 17, 1999
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 2SB11540Q CAD Model

Description

The Panasonic Electronic Components 2SB11540Q is a PNP transistor.

  • Maximum Power: 3W
  • Frequency Transition: 30MHz
  • Mounting: Through-hole
  • Package: TOP-3F
  • Discrete Semiconductor Products: Yes
  • TOP-3F-A1 Manufacturer Package: Yes
  • Current Collector (Ic): 10A
  • Voltage Collector-Emitter Breakdown (maximum): 80V
  • Vce Saturation (maximum) @ Ib, Ic: 1.5V @ 1A, 10A
  • Current Collector Cutoff (maximum): 10μA (ICBO)
  • DC Current Gain (hFE) (minimum) @ Ic, Vce: 90 @ 3A, 2V
  • Alternative Parts (Cross-Reference): 2SA1771(F), 2SA1771, 2SA1880-4000
  • Introduction Date: March 17, 1999
  • Obsolete (EOL): Yes
  • Limited Supply and Demand Status: Yes
