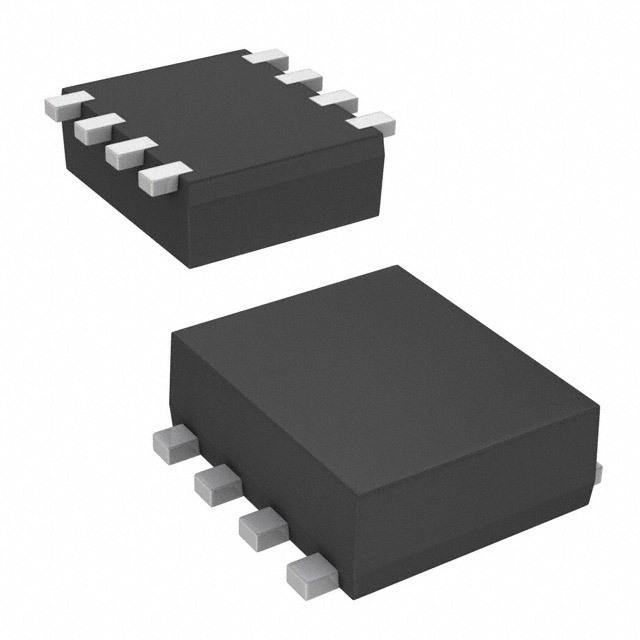

Same model may have multiple batches, images only for reference.
MTMC8E280LBF Panasonic
Same model may have multiple batches, images only for reference.

MTMC8E280LBF

Part No MTMC8E280LBF
Manufacturer Panasonic
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2N-CH 20V 7A WMINI8
Datasheet
MTMC8E280LBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
FET Type 2 N-Channel (Dual)
FET Feature Standard
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 7A
Maximum Rds On at Id,Vgs 21 mOhm @ 2A, 4.5V
Gate-Source Threshold Voltage 1.3V @ 1mA
Max Input Capacitance 1500pF @ 10V
Maximum Power Dissipation 1W
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package WMini8-F1
Win Source Part Number 096284-MTMC8E280LBF
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MTMC8E280LBF CAD Model

Description

The Panasonic Electronic Components' 096284-MTMC8E280LBF is an obsolete (EOL) electronic component that features 2 N-Channel (Dual) FETs with a maximum drain-source breakdown voltage of 20V and a continuous drain current of 7A.

  • Gate-Source Threshold Voltage: 1.3V @ 1mA
  • Maximum Input Capacitance: 1500pF @ 10V
  • WMini8-F1 packaged FET:
  • Maximum Rds On @ Id,Vgs: 21 mOhm @ 2A, 4.5V
