Same model may have multiple batches, images only for reference.

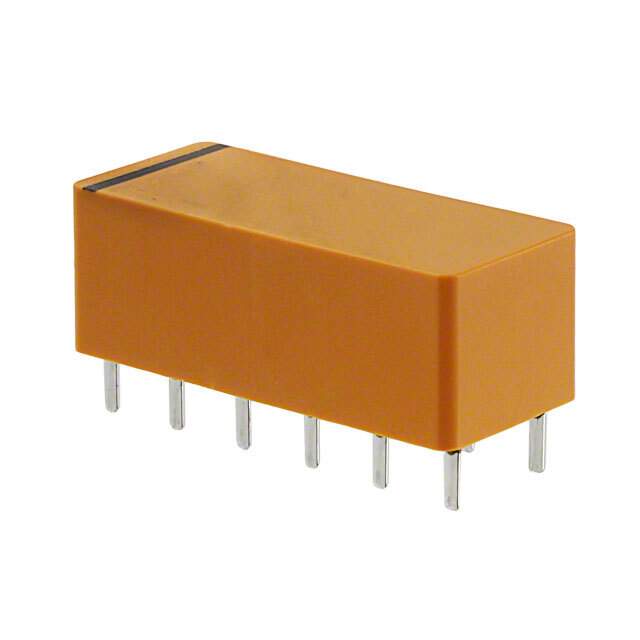

S2EB-L2-5V Real Image
Same model may have multiple batches, images only for reference.

S2EB-L2-5V

Part No S2EB-L2-5V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PST 4A 5V / General Purpose Relay 4PST-2NO/2NC (2 Form A, 2 Form B) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series S
Package Tray
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form 4PST-2NO/2NC (2 Form A, 2 Form B)
Contact Rating (Current) 4 A
Switching Voltage 250VAC, 48VDC - Max
Coil Current 38.5 mA
Coil Type Latching, Dual Coil
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 3.5 VDC
Operate Time 15 ms
Release Time 15 ms
Temperature Range - Operating -55°C ~ 65°C
Contact Material Silver Alloy, Cadmium Free
Relay Type General Purpose
Coil Resistance 130 Ohms
Base Product Number S2EB
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1348656-S2EB-L2-5V
Ultra Librarian 3D Model Ultra Librarian S2EB-L2-5V CAD Model

Description

The Panasonic Electric Works S2EB-L2-5V is a power relay that has a 4PST-2NO/2NC (2 Form A, 2 Form B) contact form.

  • Contact Form: 4PST-2NO/2NC (2 Form A, 2 Form B)
  • Contact Rating (Current): 4 A
  • Switching Voltage: 250VAC, 48VDC - Max
  • Coil Voltage: 5VDC
  • Coil Resistance: 130 Ohms
  • Features: Latching, Dual Coil
  • Termination Style: PC Pin
  • Mounting Type: Through Hole
  • Operating Temperature: -55°C to 65°C
  • Packaging: Tray
