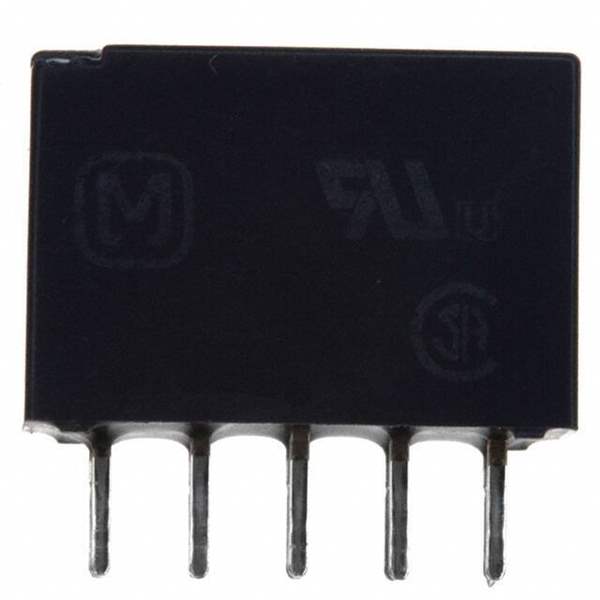

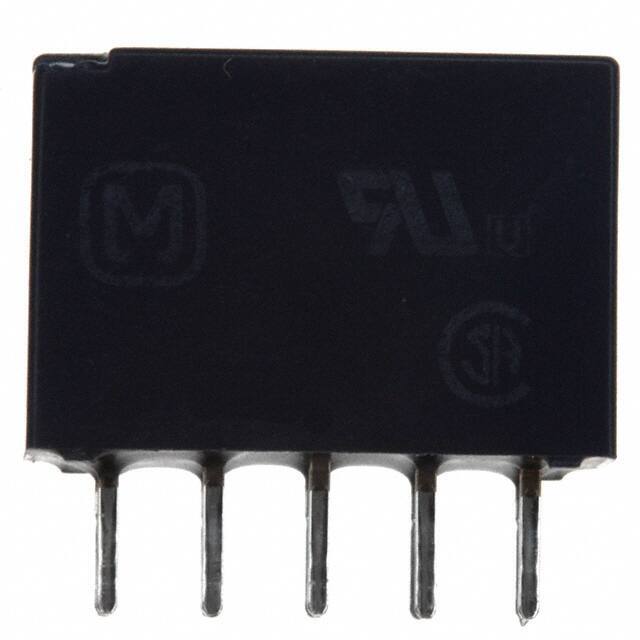

TN2-L-12V

Name: TN2-L-12V
Brand: Panasonic
SKU: 937135
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TN2-L-12V
Manufacturer	Panasonic
Catalog	Signal Relays, Up to 2 Amps
Description	RELAY GEN PURPOSE DPDT 1A 12VDC / General Purpose Relay DPDT (2 Form C) Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Relays - Signal Relays, Up to 2 Amps
Mfr	Panasonic
Series	TN
Package	Tube
Product Status	Obsolete
Mounting Type	Through Hole
Coil Voltage	12VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	1 A
Switching Voltage	125VAC, 110VDC - Max
Coil Current	8.3 mA
Coil Type	Latching, Single Coil
Termination Style	PC Pin
Seal Rating	Sealed - Fully
Must Operate Voltage	9 VDC
Operate Time	3 ms
Release Time	3 ms
Temperature Range - Operating	-40°C ~ 70°C
Contact Material	Silver (Ag), Gold (Au)
Relay Type	General Purpose
Coil Resistance	1.44 kOhms
Base Product Number	TN2-L
Standard Package	50 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.41.0020
Win Source Part Number	937135-TN2-L-12V
Ultra Librarian 3D Model	Ultra Librarian TN2-L-12V CAD Model

Alternative Products

Description

The TN2-L-12V is a DPDT (2 Form C) signal relay with a coil voltage of 12VDC.

Manufacturer: Panasonic
Type: Signal Relay
Contact Configuration: DPDT (2 Form C)
Coil Voltage: 12VDC
Contact Rating: 1A
Switching Voltage: 125VAC, 110VDC
Coil Resistance: 1.44 kOhms
Coil Current: 8.3 mA
Operate Time: 3 ms
Release Time: 3 ms
Type: General Purpose, Latching, Single Coil
Mounting: Through-Hole
Temperature Range: -40°C to 70°C
Series: TN
Package: Tube
Sealed: Yes
Status: Obsolete
