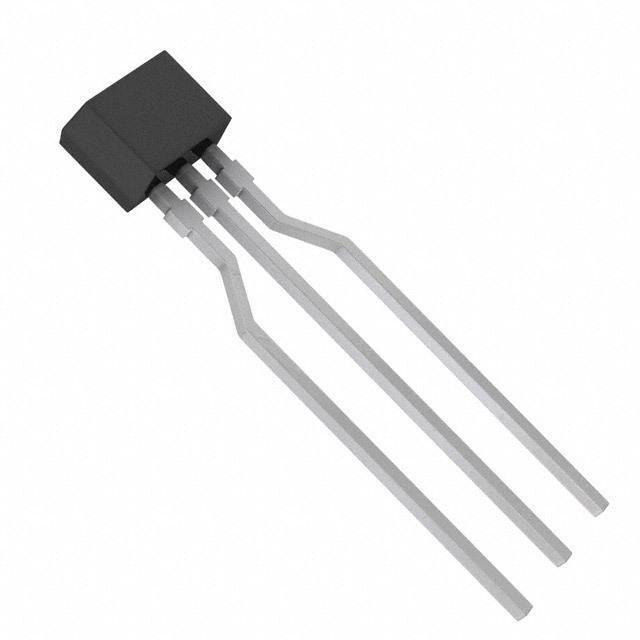

Same model may have multiple batches, images only for reference.
UNR421300A Panasonic
Same model may have multiple batches, images only for reference.

UNR421300A

Part No UNR421300A
Manufacturer Panasonic
Catalog Transistors (BJT) - Single, Pre - Biased
Description TRANS PREBIAS NPN 300MW NS-B1 / Trans Digital BJT NPN 50V 100mA 3-Pin NS-B1
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Tape in Box
Part Status Obsolete(EOL)
Transistor Type NPN - Pre-Biased
Current - Collector (Ic) (Maximum) 100mA
Voltage - Collector Emitter Breakdown (Maximum) 50V
Resistor - Base (R1) (Ohms) 47k
Resistor - Emitter Base (R2) (Ohms) 47k
DC Current Gain (hFE) (Minimum) @ Ic, Vce 80 @ 5mA, 10V
Vce Saturation (Maximum) @ Ib, Ic 250mV @ 300μA, 10mA
Current - Collector Cutoff (Maximum) 500nA
Frequency - Transition 150MHz
Power - Max 300mW
Mounting Style Through Hole
Package NS-B1
Manufacturer Package NS-B1
Win Source Part Number 798817-UNR421300A
Popularity Medium
Supply and Demand Status Limited
Family Name UNR4213
Introduction Date March 12, 2001
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian UNR421300A CAD Model

Description

The UNR421300A, manufactured by Panasonic Electronic Components, is an obsolete (EOL) NPN pre-biased transistor. Panasonic Electronic Components

  • Maximum Power: 300mW
  • Frequency Transition: 150MHz
  • Win Source Part Number: 798817-UNR421300A
  • Popularity: Medium
  • Supply and Demand Status: Limited
