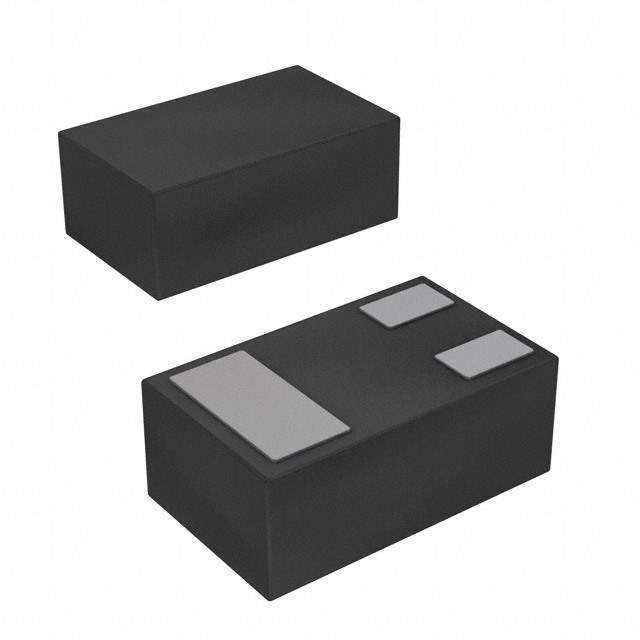

Same model may have multiple batches, images only for reference.

UNRF2A100A

Name: UNRF2A100A
Brand: Panasonic
SKU: 533652
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	UNRF2A100A
Manufacturer	Panasonic
Catalog	Transistors (BJT) - Single, Pre - Biased
Description	TRANS PREBIAS NPN 100MW ML3-N2
Datasheet	UNRF2A100A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Panasonic Electronic Components
Packaging	Reel - TR
Status	Active
Transistor Polarity	NPN - Pre-Biased
Maximum Current Collector	80mA
VCEO Maximum Collector-Emitter Breakdown Voltage	50V
Resistor - Base (R1) (Ohms)	10k
Resistor - Emitter Base (R2) (Ohms)	10k
Typical Gain (hFE) (Min)	35 @ 5mA, 10V
Max Vce (sat)	250mV @ 300μA, 10mA
Collector Cut-off Current(Max)	500nA
Frequency - Transition	150MHz
Maximum Power Dissipation	100mW
Mounting	SMD (SMT)
Case / Package	ML3-N2
Win Source Part Number	1116483-UNRF2A100A
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian UNRF2A100A CAD Model

Alternative Products

Description

The UNRF2A100A is a high-performance NPN pre-biased transistor from Panasonic Electronic Components.

Base Resistor (R1): 10k ohms
Emitter-Base Resistor (R2): 10k ohms
Maximum Collector Current: 80mA
Collector-Emitter Breakdown Voltage: 50V
Maximum Power Dissipation: 100mW
Typical Gain (hFE): 35 @ 5mA, 10V
Case/Package: ML3-N2
Packaging: Reel-tr
Category: Discrete semiconductor products
Market Status: Active
