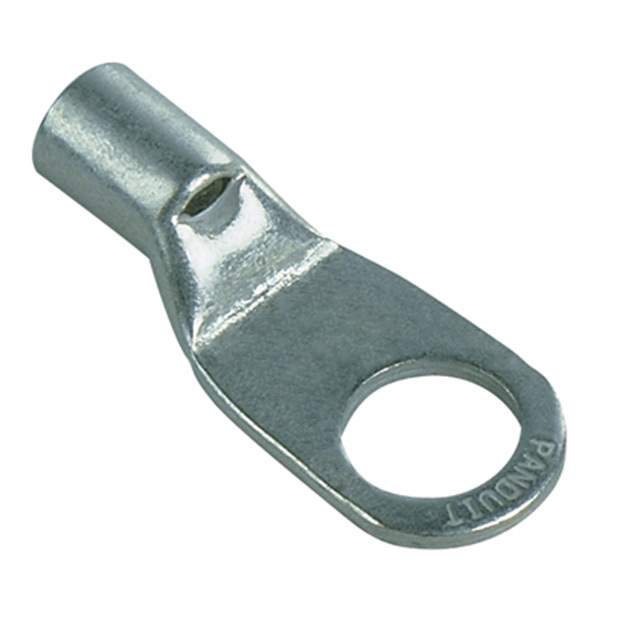

S4-38R-E Real Image
Same model may have multiple batches, images only for reference.

S4-38R-E

Part No S4-38R-E
Manufacturer Panduit Corp
Catalog Terminals
Datasheet
S4-38R-E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr Panduit Corp
Series Pan-Term®
Package Bulk
Product Status Obsolete
Terminal Type Flat Sided
Stud/Tab Size 3/8 Stud
Thickness 0.070" (1.78mm)
Width - Outer Edges 0.620" (15.75mm)
Length - Overall 1.500" (38.10mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp, Funnel Opening
Wire Gauge 4 AWG
Insulation Non-Insulated
Contact Material Copper
Contact Finish Tin
Base Product Number S4-38
Other Names S4-38R-E,298-11879
Standard Package 20
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1285166-S4-38R-E
Ultra Librarian 3D Model Ultra Librarian S4-38R-E CAD Model

Description

The S4-38R-E is a non-insulated ring connector manufactured by Panduit Corp.

  • Thickness: 0.070 inches (1.78mm)
  • Width: 0.620 inches (15.75mm)
  • Length: 1.500 inches (38.10mm)
  • Win Source Part Number: 1285166-S4-38R-E
  • Termination: Crimp termination
  • Opening: Funnel
  • Contact Finish: Tin
  • Stud/Tab Size: 3/8 stud
  • Package: Standard package of 20
