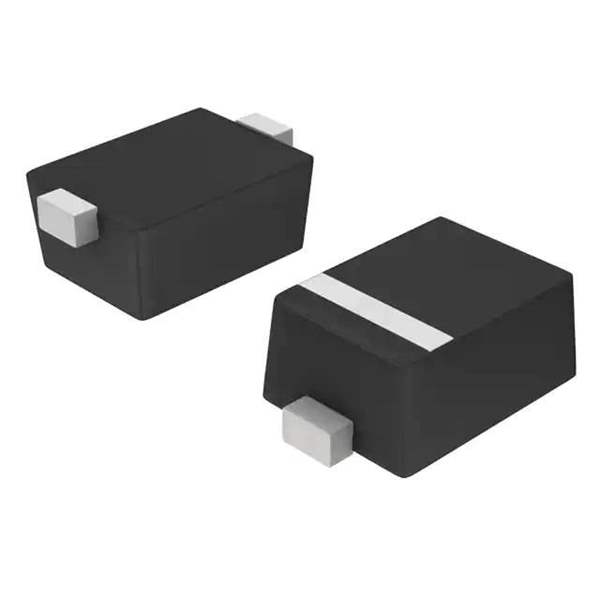

BAT54TM_R1_00001 Real Image
Same model may have multiple batches, images only for reference.

BAT54TM_R1_00001

Part No BAT54TM_R1_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 200MA SOD923
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Panjit
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 600 mV @ 100 mA
Speed Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr 2 µA @ 25 V
Mounting Type Surface Mount
Package / Case SOD-923
Supplier Device Package SOD-923
Operating Temperature - Junction -55°C ~ 125°C
Base Product Number BAT54
Standard Package 8,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 568901-BAT54TM_R1_00001
Ultra Librarian 3D Model Ultra Librarian BAT54TM_R1_00001 CAD Model

Description

The BAT54TM_R1_00001 is a single Schottky diode used in discrete semiconductor applications.

  • Type: Single Schottky Diode
  • Application: discrete semiconductor
  • Package: SOD-923
  • Packaging: tape and reel (8,000 pieces)
  • Application: small signal applications
  • Maximum Average Rectified Current: 200mA
  • Forward Voltage: 600mV @ a forward current of 100mA
  • Reverse Leakage Current: 2µA @ 25V
  • Maximum Reverse Voltage: 30V
  • Mounting Type: surface mountable
  • Temperature Range: -55°C to 125°C
  • Manufacturer: Panjit
  • Product Status: active
