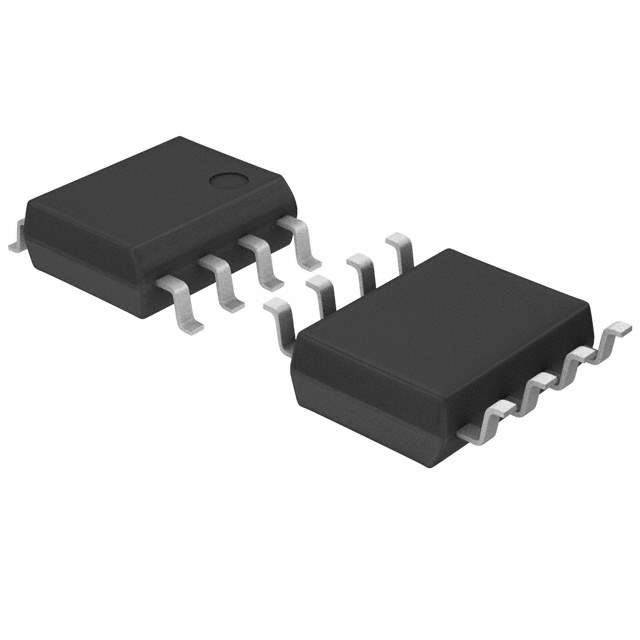

The Panjit International Inc. 1085292-PJL9430A_R2_00001 is an N-Channel MOSFET transistor that is ideal for use in Discrete Semiconductor Products such as Transistors-FETs and MOSFETs.

• Category: Discrete Semiconductor Products
• Drain to Source Voltage (Vdss): 60 V
• Current - Continuous Drain (Id) @ 25°C: 4.8A (Ta)
• Rds On (Max) @ Id, Vgs: 50mOhm @ 4.8A, 10V
• Gate Charge (Qg) (Max) @ Vgs: 14 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds: 815 pF @ 15 V
• Power Dissipation (Max): 2.5W (Ta)
• Operating Temperature: -55°C ~ 150°C (TJ)
• Package / Case: 8-SOIC (0.154", 3.90mm Width)
• Supplier Device Package: 8-SOP
• Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
