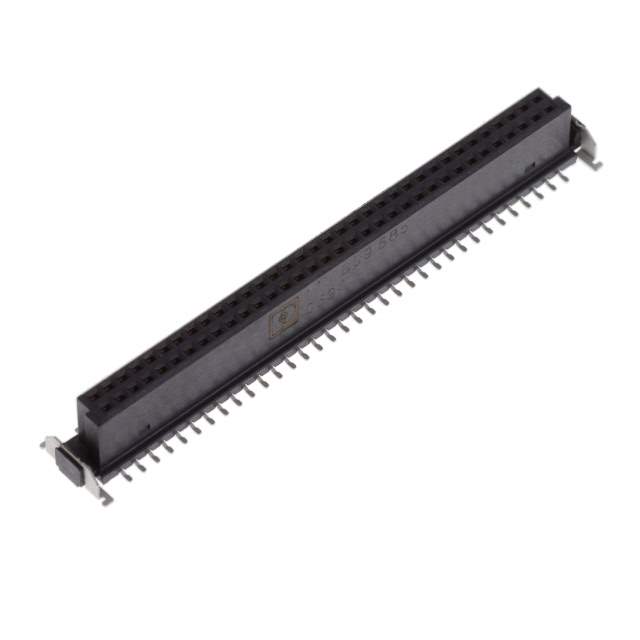

Same model may have multiple batches, images only for reference.

1714899

Name: 1714899
Brand: Phoenix Contact
SKU: 1315064
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	1714899
Manufacturer	Phoenix Contact
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Phoenix Contact
Series	COMBICON FP
Package	Tape & Reel
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	68
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Insulation Color	Black
Insulation Height	0.246" (6.25mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	8mm, 9.5mm
Features	Board Guide, Solder Retention
Current Rating (Amps)	1.4A
Voltage Rating	500V
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Copper Alloy
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1315064-1714899
Ultra Librarian 3D Model	Ultra Librarian 1714899 CAD Model

Alternative Products

Description

Phoenix Contact 1315064-1714899 is a rectangular connector that is designed to be used in electronic devices that require quality connectors.

Supply and Demand Status: Unlimited
Contact Material: Copper Alloy
Voltage Rating: 500V
Temperature Range: -55°C to 125°C
Positions: 68
Connector Type: Receptacle
