Same model may have multiple batches, images only for reference.

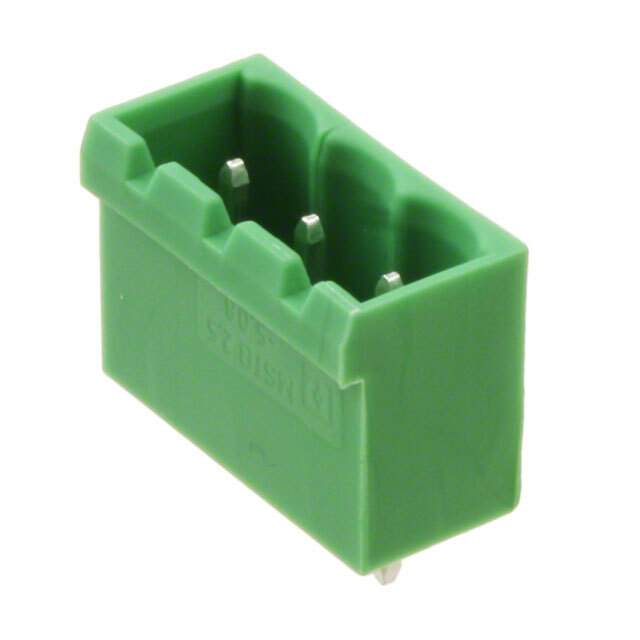

1755749 Real Image
Same model may have multiple batches, images only for reference.

1755749

Part No 1755749
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description Terminal Header; 12 A; 250 V; 5.08 mm; 3; Solder Mount; 1.4 mm; 4 kV; 250 V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CB, CSA, UL, VDE, cULus
Color Green
Connector Type Plug
Contact Material Tin
Contact Plating Tin
Current 12 A
Current Rating 12 A
Depth 8.6 mm
Flammability Rating UL94 V-0
Height 15.9 mm
Housing Color Green
Housing Material Polybutylene
Lead Free Lead Free
Lead Pitch 5.08 mm
Length 17.24 mm
Max Current Rating 12 A
Mount Through Hole
Number of Contacts 3
Number of Levels 1
Number of Poles 3
Number of Positions 3
Number of Positions Per Level 3
Number of Rows 1
Orientation Straight
Pitch 5.08 mm
RoHS Compliant
Termination Solder
Voltage 300 V
Voltage Rating 250 V
Voltage Rating (AC) 250 V
Voltage Rating (DC) 250 V
Weight 154.999997 g
Width 17.24 mm
Win Source Part Number 1217132-1755749
Categories Terminal Blocks
Manufacturer Phoenix Contact
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1755749 CAD Model

Description

This Phoenix Contact Terminal Block is a versatile and reliable block that is designed to meet the needs of a wide range of electronic components.

  • Termination: Solder
  • Material: Polybutylene
  • Approvals: CB, CSA, UL, VDE, and cULus
  • Supply and Demand Status: Limited
