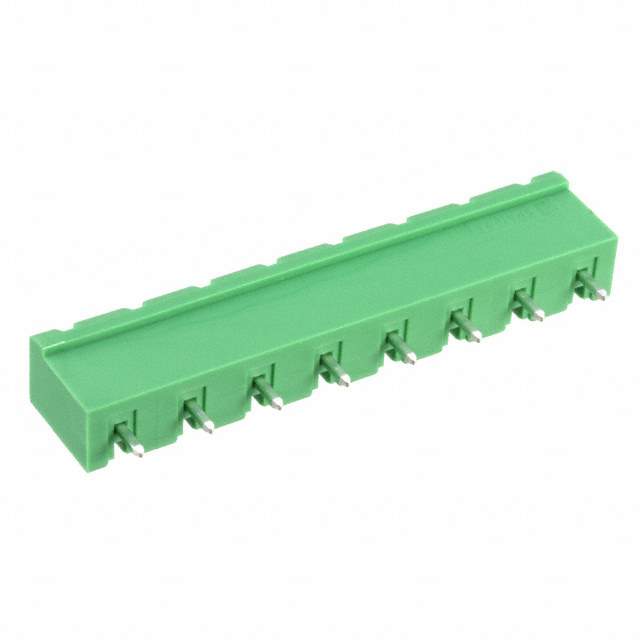

The Phoenix Contact GMSTBVA 2,5/8-G is a header with male pins, shrouded on 4 sides, designed for interconnects in terminal blocks.

• Positions per Level: 8
• Number of Levels: 1
• Pitch: 0.295 inches
• Header Orientation: Vertical
• Termination Style: Solder
• Current Rating (IEC): 12A
• Current Rating (UL): 15A
• Voltage Rating (IEC): 630V
• Voltage Rating (UL): 300V
• Housing Material: Polyamide (PA), Nylon
• Flammability Rating: UL94 V-0
• Standard Package: 100
• Mounting Style: Through Hole
• Insulation Height: 0.472 inches
• Contact Tail Length: 0.154 inches
• ROHS3 Compliant: Yes
• REACH Affected: No
