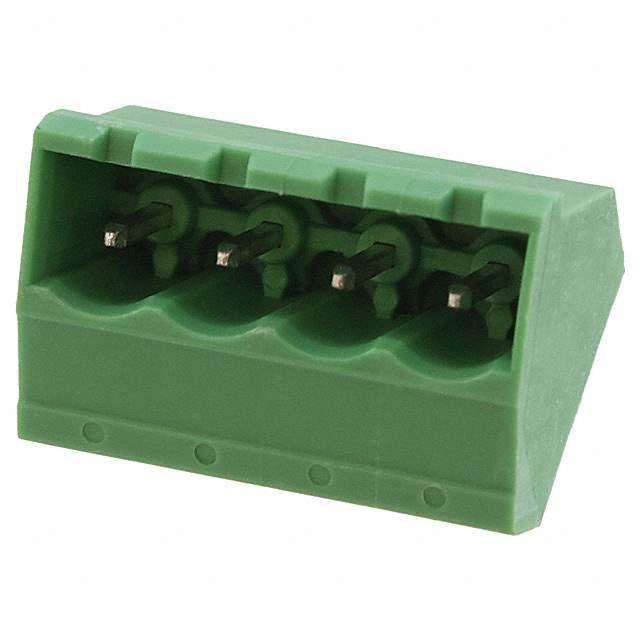

1767397 Real Image1 1767397 Real Image2
Same model may have multiple batches, images only for reference.
1767397 Real Image1 1767397 Real Image2
1767397 Real Image1 1767397 Real Image2
Same model may have multiple batches, images only for reference.

1767397

Part No 1767397
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 4POS 45DEG 5.08MM / 4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 45° Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Mfr Phoenix Contact
Series COMBICON SMSTBA
Package Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 4
Positions Per Level 4
Number of Levels 1
Pitch 0.200" (5.08mm)
Header Orientation 45°
Plug Wire Entry -
Termination Style Solder
Mounting Type Through Hole
Current - IEC 12A
Voltage - IEC 630 V
Current - UL 15 A
Voltage - UL 300 V
Wire Gauge or Range - AWG -
Wire Gauge or Range - mm2 -
Color Green
Temperature Range - Operating -
Contact Mating Finish Tin
Features -
Material Flammability Rating UL94 V-0
Ingress Protection -
Screw Size -
Torque - Screw -
Wire Strip Length -
Contact Material -
Housing Material Polyamide (PA), Nylon
Contact Tail Length 0.138" (3.50mm)
Insulation Height 0.583" (14.80mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 50 pcs
Win Source Part Number 1380568-1767397
Ultra Librarian 3D Model Ultra Librarian 1767397 CAD Model

Description

The COMBICON SMSTBA series terminal block header from Phoenix Contact is a reliable and versatile solution for electrical connections.

  • Product Series: COMBICON SMSTBA
  • Positions per Level: 4
  • Number of Levels: 1
  • Pitch: 0.200" (5.08mm)
  • Header Orientation: 45°
  • Termination Style: Solder
  • Current Rating (IEC): 12A
  • Voltage Rating (IEC): 630V
  • Material: Polyamide (PA) and Nylon
  • Color: Green
  • Design: Shrouded
  • Package: Bulk (50 pcs)
