1787056

Name: 1787056
Brand: Phoenix Contact
SKU: 1332273
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1787056
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets

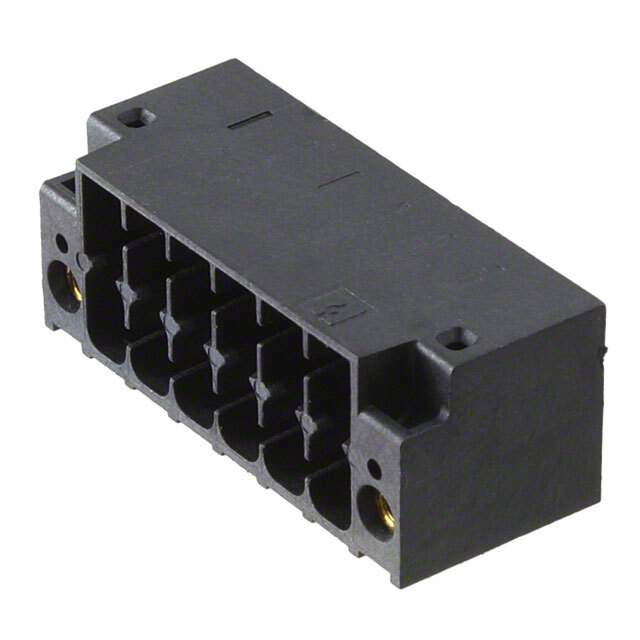

Description	TERM BLOCK HDR 12POS 90DEG 3.5MM / 12 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole
Datasheet	1787056 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	12
Positions Per Level	6
Number of Levels	2
Pitch	0.138" (3.50mm)
Header Orientation	90°, Right Angle
Termination Style	Solder
Mounting	Through Hole
Current - IEC	8A
Voltage - IEC	250 V
Current - UL	8 A
Voltage - UL	150 V
Color	Black
Contact Mating Finish	Tin
Features	Mating and Mounting Flange
Material Flammability Rating	UL94 V-0
Housing Material	Liquid Crystal Polymer (LCP)
Contact Tail Length	0.079" (2.00mm)
Insulation Height	0.425" (10.80mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	1787056-ND,DMC156G1F35LRP20THR,DMC1,5/6-G1F-3,5-LRP20THR,277-8741
Standard Package	50
Win Source Part Number	1332273-1787056
Ultra Librarian 3D Model	Ultra Librarian 1787056 CAD Model

Alternative Products

Description

The Phoenix Contact 1787056 is a header with male pins and a shrouded (4 side) type.

Positions: 12
Positions per Level: 6
Levels: 2
Pitch: 0.138" (3.50mm)
Header Orientation: 90°, right angle
Mounting Style: through-hole
Termination Style: solder
Current Rating (IEC): 8A
Current Rating (UL): 8A
Voltage Rating (IEC): 250V
Voltage Rating (UL): 150V
Housing Material: liquid crystal polymer (LCP)
Material Flammability Rating: UL94 V-0
Contact Mating Finish: tin
Features: mating and mounting flange
Insulation Height: 0.425" (10.80mm)
Contact Tail Length: 0.079" (2.00mm)
Standard Package: 50
RoHS Compliant: yes
