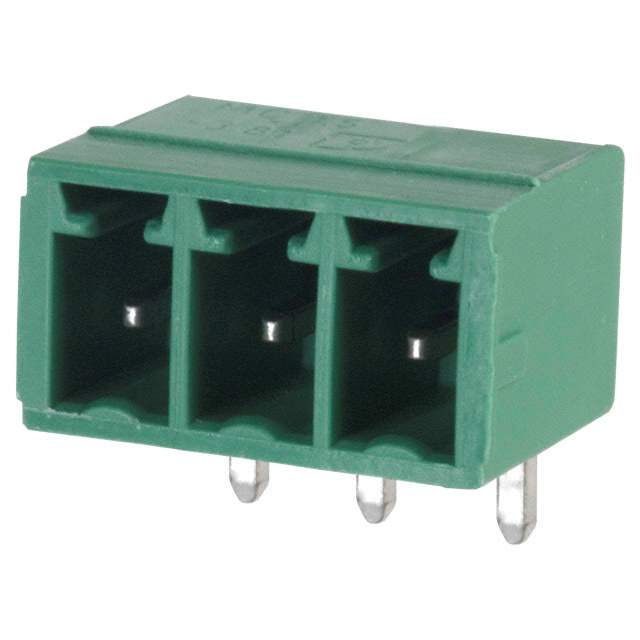

1803280 Real Image
Same model may have multiple batches, images only for reference.

1803280

Part No 1803280
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 3POS 90DEG 3.81MM / 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) 90°, Right Angle Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer Phoenix Contact
Packaging Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 3
Positions Per Level 3
Number of Levels 1
Pitch 0.150" (3.81mm)
Header Orientation 90°, Right Angle
Termination Style Solder
Mounting Through Hole
Current - IEC 8A
Voltage - IEC 250 V
Current - UL 8 A
Voltage - UL 300 V
Color Green
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Housing Material Polybutylene Terephthalate (PBT)
Contact Tail Length 0.134" (3.40mm)
Insulation Height 0.285" (7.25mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number MC 1.5/3-G-3.81,277-1207,MC1,5/3-G-3,81
Standard Package 250
Win Source Part Number 1332269-1803280
Ultra Librarian 3D Model Ultra Librarian 1803280 CAD Model

Description

The Phoenix Contact 1332269-1803280 is a header male pins shrouded connector that is used in interconnects and terminal blocks.

  • Positions per Level: 3
  • Number of Levels: 1
  • Pitch: 0.150 inches (3.81mm)
  • Termination Style: solder
  • Current: 8A
  • Voltage (IEC): 250V
  • Voltage (UL): 300V
  • Housing Material: polybutylene terephthalate (PBT)
  • RoHS Compliant: yes
  • Mounting: through hole
  • Insulation Height: 0.285 inches (7.25mm)
