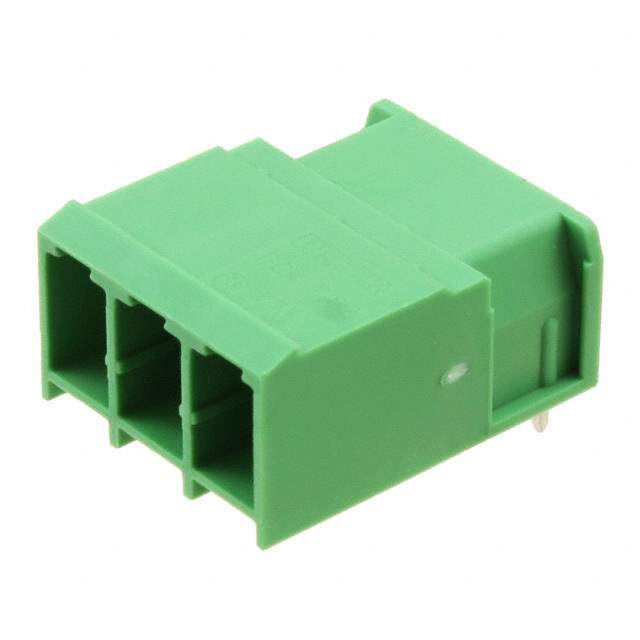

1804807 Real Image
Same model may have multiple batches, images only for reference.

1804807

Part No 1804807
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 3POS 90DEG 7.62MM / 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.300" (7.62mm) 90°, Right Angle Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer Phoenix Contact
Packaging Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 3
Positions Per Level 3
Number of Levels 1
Pitch 0.300" (7.62mm)
Header Orientation 90°, Right Angle
Termination Style Solder
Mounting Through Hole
Current - IEC 20A
Voltage - IEC 630 V
Current - UL 20 A
Voltage - UL 300 V
Color Green
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Housing Material Polyamide (PA), Nylon
Contact Tail Length 0.197" (5.00mm)
Insulation Height 1.142" (29.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 277-1467,PC4/3-G-7,62,PC 4/3-G-7.62
Standard Package 50
Win Source Part Number 1332228-1804807
Ultra Librarian 3D Model Ultra Librarian 1804807 CAD Model

Description

The Phoenix Contact header male pins are a reliable and efficient way to connect wires to a printed circuit board.

  • Orientation: Right-angle
  • Shrouded: All four sides
  • Positions per Level: Three
  • Levels: One
  • Pitch: 0.300 inches (7.62mm)
  • Termination Style: Solder
  • Contact Mating Finish: Tin
  • Housing Material: Polyamide (PA) and nylon
  • Flammability Rating: UL94 V-0
  • Current Rating (IEC): 20A
  • Voltage Rating (IEC): 630V
  • Current Rating (UL): 20A
  • Voltage Rating (UL): 300V
  • Insulation Height: 1.142 inches (29.00mm)
  • Contact Tail Length: 0.197 inches (5.00mm)
  • RoHS3 Compliant: Yes
  • Standard Package: 50
