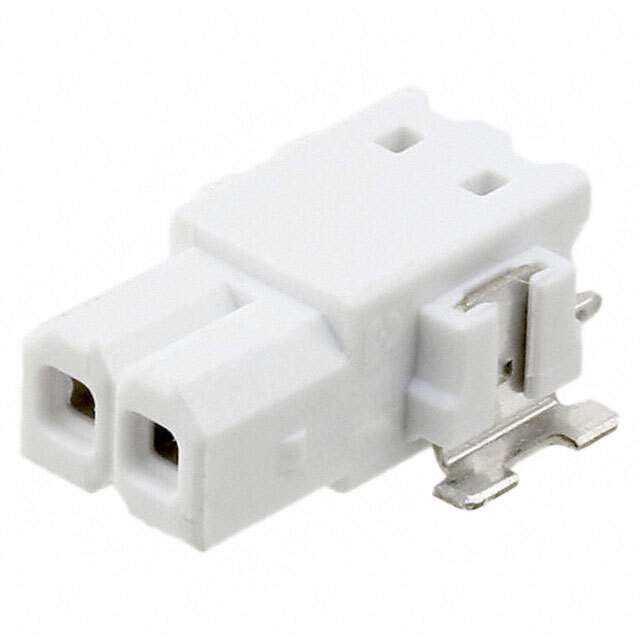

Same model may have multiple batches, images only for reference.

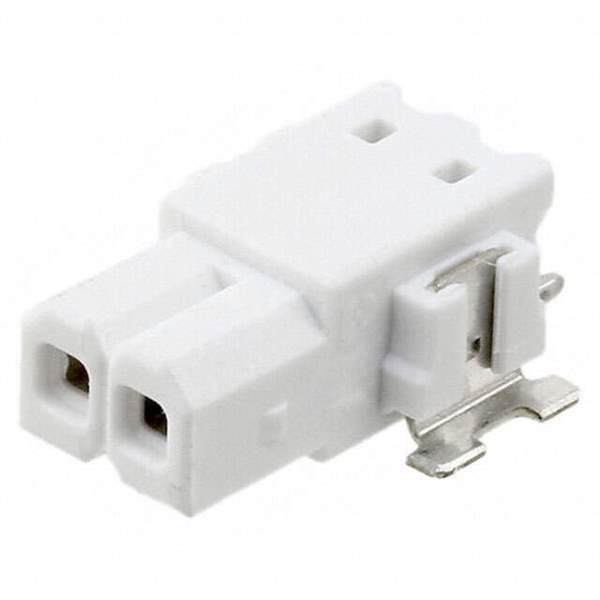

1815196 Real Image
Same model may have multiple batches, images only for reference.

1815196

Part No 1815196
Manufacturer Phoenix Contact
Catalog Solid State Lighting Connectors
Datasheet
1815196 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Solid State Lighting Connectors
Mfr Phoenix Contact
Series COMBICON PTSM
Package Tape & Reel
Style Board to Cable/Wire
Connector Type Header, Female Sockets
Number of Positions 2
Mounting Type Surface Mount, Right Angle
Termination Solder
Pitch 0.098" (2.50mm)
Fastening Type Detent Lock
Features Solder Retention
Housing Color White
Contact Finish Tin
Housing Material Polyamide (PA), Nylon
Voltage Rating 150V
Current Rating (Amps) 5A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1314606-1815196
Ultra Librarian 3D Model Ultra Librarian 1815196 CAD Model

Description

The Phoenix Contact COMBICON PTSM series is a board-to-cable/wire connector type that features a female socket header with two positions and a pitch of 0.098 inches (2.50mm).

  • Manufacturer: Phoenix Contact
  • Series: COMBICON PTSM
  • Connector Type: Board-to-Cable/Wire
  • Type: Female Socket Header
  • Number of Positions: 2
  • Pitch: 0.098 inches (2.50mm)
  • Fastening Type: Detent Lock
  • Termination: Solder
  • Voltage Rating: 150V
  • Current Rating: 5A
  • Housing Material: Polyamide (PA), Nylon
  • Housing Color: White
  • Mounting: Surface
  • Orientation: Right-Angle
  • Features: Solder Retention
  • Package: Tape and Reel
