1952089

Name: 1952089
Brand: Phoenix Contact
SKU: 919183
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	1952089
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets

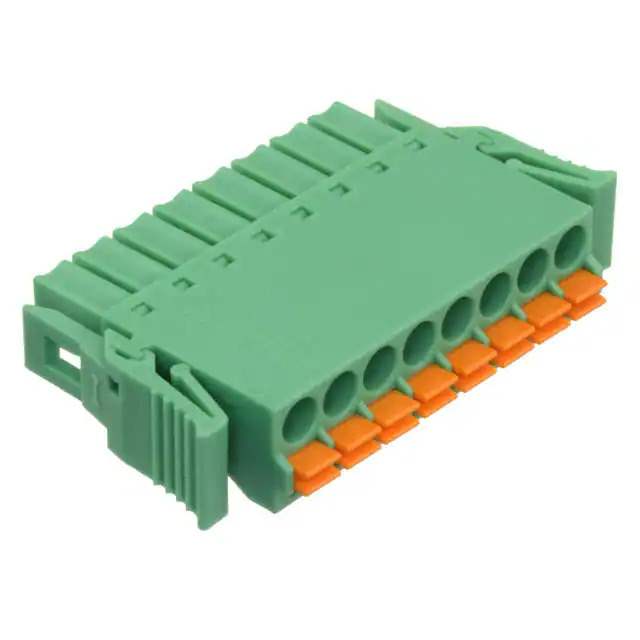

Description	TERM BLOCK PLUG 8POS STR 3.5MM / 8 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)
Datasheet	1952089 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	Phoenix Contact
Series	COMBICON FMC
Package	Bulk
Product Status	Active
Type	Plug, Female Sockets
Number of Positions	8
Positions Per Level	8
Number of Levels	1
Pitch	0.138" (3.50mm)
Plug Wire Entry	180°
Termination Style	Screwless - Push-In Spring
Mounting Type	Free Hanging (In-Line)
Current - IEC	8A
Voltage - IEC	320 V
Current - UL	8 A
Voltage - UL	150 V
Wire Gauge or Range - AWG	16-24 AWG
Wire Gauge or Range - mm2	0.2-1.5mm2
Color	Green
Contact Mating Finish	Tin
Features	Latch Lock
Material Flammability Rating	UL94 V-0
Wire Strip Length	10mm
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.307" (7.80mm)
Standard Package	50 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	919183-1952089
Ultra Librarian 3D Model	Ultra Librarian 1952089 CAD Model

Alternative Products

Description

The 919183-1952089 is a plug and female socket terminal block from the COMBICON FMC series by Phoenix Contact.

Positions: 8
Positions per Level: 8
Pitch: 0.138" (3.50mm)
Termination Style: screwless push-in spring
Current Rating (IEC): 8A (IEC)
Current Rating (UL): 8A (UL)
Voltage Rating (IEC): 320V (IEC)
Voltage Rating (UL): 150V (UL)
Wire Gauge: 16-24 AWG (0.2-1.5mm2)
Housing Material: polyamide (PA)
Standard Package: 50 pieces
