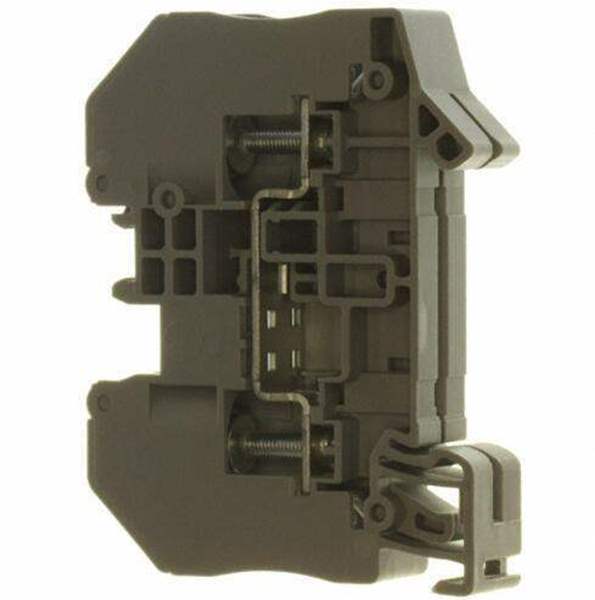

3049013 Phoenix Contact
Same model may have multiple batches, images only for reference.

3049013

Part No 3049013
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description CONN TERM BLK FEED THRU 14-26AWG
Datasheet
3049013 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Phoenix Contact
Category Connectors, Interconnects Terminal Blocks Din Rail, Channel
Package Box
Product Status Active
Type Feed Through
Terminal - Width 12.3mm
Termination Style Bolt and Nut
Current - IEC 24 A
Voltage - IEC 1000V
Current - UL 30 A
Voltage - UL 600V
Material - Insulation Polyamide (PA), Nylon
Win Source Part Number WS1207720-3049013
Ultra Librarian 3D Model Ultra Librarian 3049013 CAD Model

Description

Feed-through terminal block with bolt connection, cross section: 0.1 - 2.5 mm<sup>2, AWG: 26 - 14, width 12.3 mm, color: Gray
