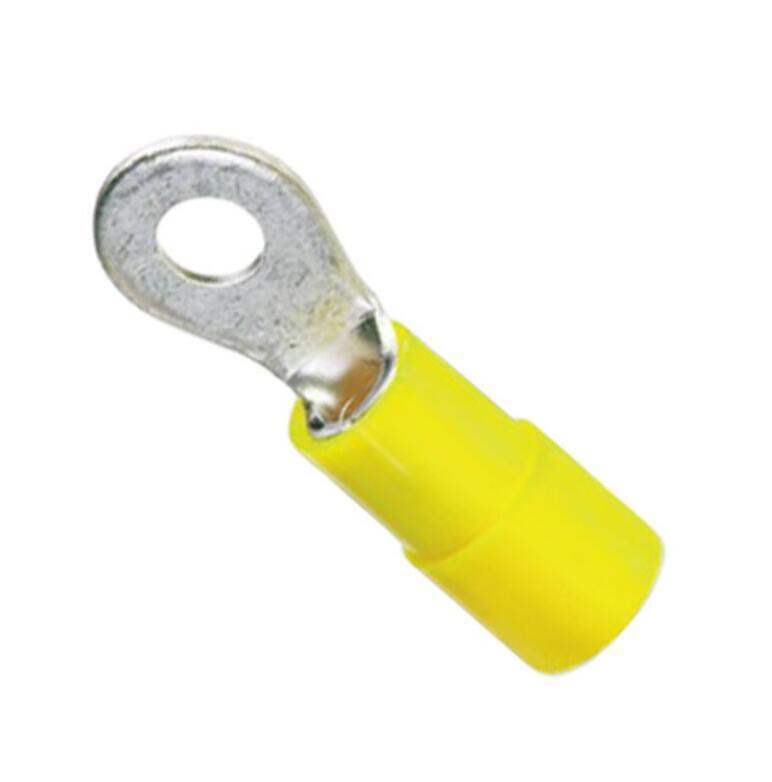

Same model may have multiple batches, images only for reference.
3240030 Phoenix Contact
Same model may have multiple batches, images only for reference.

3240030

Part No 3240030
Manufacturer Phoenix Contact
Catalog Terminals
Description CONN RING CIRC 10-12AWG M8 CRIMP
Datasheet
3240030 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1204383-3240030
Win Source Part Number Cross
Manufacturer Phoenix Contact
Category Connectors, Interconnects Terminals Ring Connectors
Series CLIPLINE
Package Bulk
Product Status Active
Terminal Type Circular
Stud/Tab Size M8 Stud
Thickness 0.039" (0.99mm)
Width - Outer Edges 0.591" (15.00mm)
Length - Overall 1.374" (34.90mm)
Mounting Type Free Hanging (In-Line)
Ultra Librarian 3D Model Ultra Librarian 3240030 CAD Model

Description

Product Features：● The insulated ring cable lugs with plastic sleeve are hard-soldered and feature the 'EASY ENTRY' system  ● The sleeves are conically tapered to facilitate easy and correct insertion of the conductor
