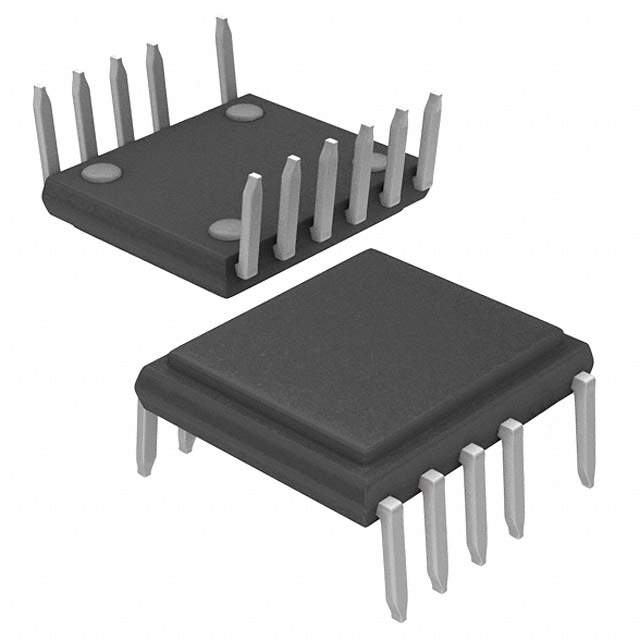

LNK6765V

Name: LNK6765V
Brand: Power Integrations
SKU: 471612
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	LNK6765V
Manufacturer	Power Integrations
Catalog	PMIC - AC DC Converters, Offline Switchers
Description	IC OFF-LINE SWITCH PWM 12DIP
Datasheet	LNK6765V Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits
Manufacturer	Power Integrations
Packaging	Tube/Rail
Status	Active
Output Isolation	Isolated
Internal Switch(s)	Yes
Voltage - Breakdown	650V
Topology	Flyback
Duty Cycle	64%
Frequency - Switching	120kHz to 136kHz
Power (Watts)	30W
Fault Protection	Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
Control Operating Temperature	-40°C to 150°C (TJ)
Case / Package	eDIP-12
Mounting	Through Hole
Win Source Part Number	1056029-LNK6765V
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian LNK6765V CAD Model

Alternative Products

Description

The LNK6765V from Power Integrations is a flyback topology integrated circuit.

Mounting Type: Through-Hole
Package: eDIP-12
Output: Isolated
Voltage Breakdown: 650V
Internal Switch: Yes
Power: Up to 30W
Duty Cycle: 64%
Switching Frequency: 120kHz to 136kHz
Fault Protection: Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit Protection
