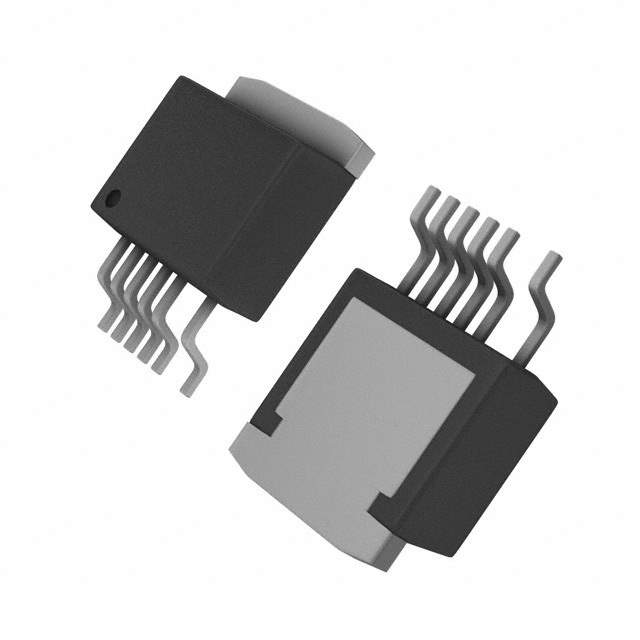

TOP242R Real Image
Same model may have multiple batches, images only for reference.

TOP242R

Part No TOP242R
Manufacturer Power Integrations
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC OFFLINE SWIT UVLO HV D2PAK
Datasheet
TOP242R Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Power Integrations
Packaging Reel - TR
Status Active
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 700V
Topology Flyback
Duty Cycle 66.5%
Frequency - Switching 66kHz to 132kHz
Power (Watts) 22W
Fault Protection Current Limiting, Over Temperature, Over Voltage
Control Features Frequency Control
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package TO-263-7C
Mounting Surface Mount
Win Source Part Number 213229-TOP242R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TOP242R CAD Model

Description

The Power Integrations TOP242R is a flyback topology integrated circuit with an output isolation feature.

  • Internal Switch: internal switch
  • Power Rating: 22W
  • Voltage Breakdown: 700V
  • Duty Cycle: 66.5%
  • Switching Frequency: 66kHz to 132kHz
  • Fault Protection: over-temperature, over-voltage, and current limiting
  • Frequency Control: frequency control
  • Application: commonly used in power supplies and battery chargers
  • Package: TO-263-7C
  • Temperature Range: -40°C to 150°C (TJ)
