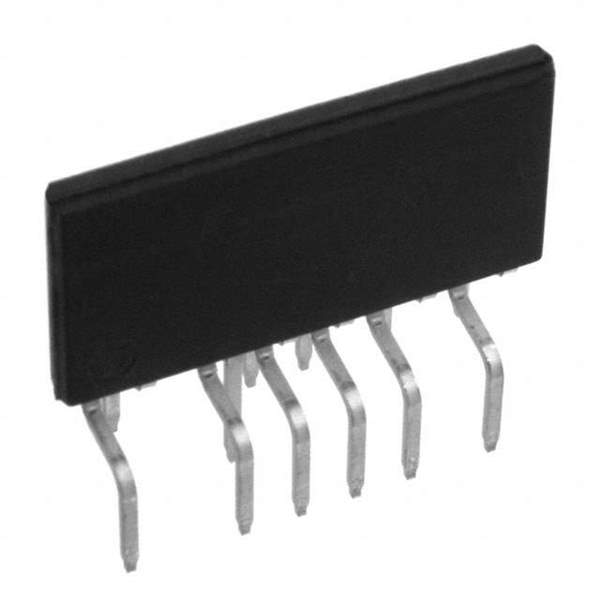

TFS7705H Real Image
Same model may have multiple batches, images only for reference.

TFS7705H

Part No TFS7705H
Manufacturer Power Integrations
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description IC REG CTRLR MULT TOPOLOGY 7ESIP / Controller 16-Pin ESIP-F Tube
Datasheet
TFS7705H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Power Integrations
Series HiperTFS-2
Packaging Tube
Output Type Transistor Driver
Function Step-Up, Step-Down
Output Configuration Positive, Isolation Capable
Topology Flyback, Forward Converter
Number of Outputs 2
Output Phases 1
Supply Voltage Up to 11.5V
Frequency - Switching 66kHz, 132kHz
Duty Cycle (Maximum) 63%
Synchronous Rectifier No
Clock Sync No
Control Features Enable, Reset
Operating Temperature Range -40°C ~ 150°C (TJ)
Package 16-SIP, 12 Leads, Exposed Pad, Formed Leads
Manufacturer Package eSIP-16F
Win Source Part Number 796697-TFS7705H
Popularity Medium
Supply and Demand Status Limited
Family Name TFS7705H
Introduction Date November 11, 2013
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian TFS7705H CAD Model

Description

The Power Integrations HiperTFS-2 series transistor driver is designed for step-up and step-down applications from Power Integrations.

  • Frequency: 66kHz or 132kHz
  • Output Configuration: Positive and isolation capable
  • Package: 16-SIP with 12 leads and an exposed pad
  • Family Name: TFS7705H
  • Control Features: Enable and reset
  • Supply Voltage: Up to 11.5V
  • Duty Cycle: 63% (Maximum)
  • Alternative Parts: ISL6265AHRTZ, LTC2955ITS8-1#PBF, LTC2955ITS8-2#PBF, and LTC2950CTS8-2#TRM
  • Topology: Flyback and forward converter
  • Introduction Date: November 11, 2013
  • Estimated EOL Date: 2027
  • Supply and Demand Status: Limited
