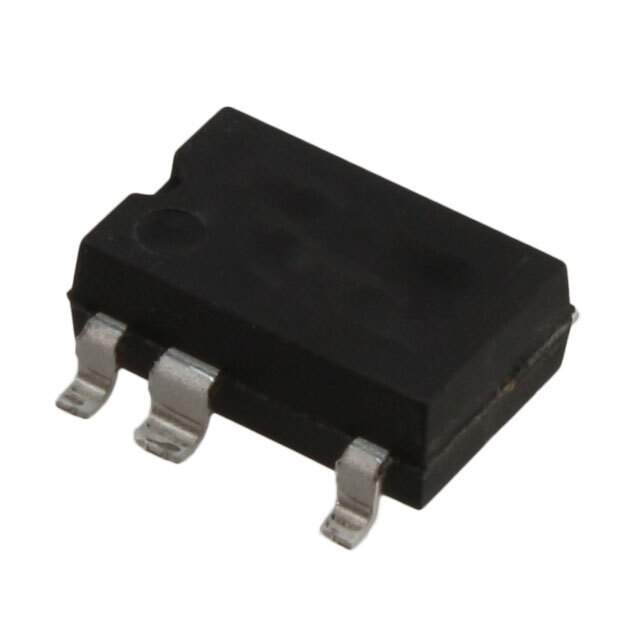

The Power Integrations TNY264GN-TL is an integrated circuit with a power of 9W and an output isolation of isolated.

• Power: 9W
• Output Isolation: Isolated
• Topology: Flyback
• Internal Switch: Yes
• Voltage Breakdown: 700V
• Package: SMD-8B
• Frequency Switching: 132kHz
• Duty Cycle: 65%
• Fault Protections: Current Limiting, Open Loop, Over Temperature, Short Circuit
• Control Feature: EN
• Family: TNY264
• Lifecycle Status: Not For New Designs
• Operating Temperature: -40°C to 150°C (TJ)
• Supply and Demand Status: Balanced
• HTSUS: 8536.90.4000
• Estimated EOL Date: 2022
• Halogen Free: Compliant
• Usage: Common-Used
