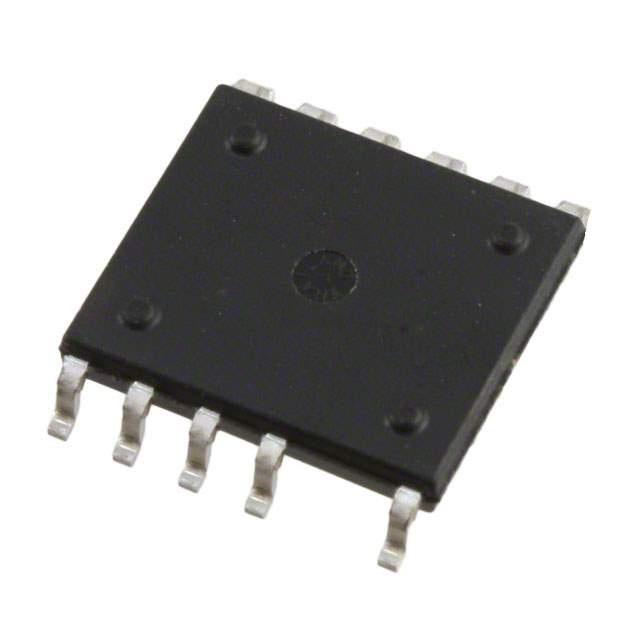

TNY284KG-TL Real Image
Same model may have multiple batches, images only for reference.

TNY284KG-TL

Part No TNY284KG-TL
Manufacturer Power Integrations
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC OFFLINE SWITCH FLYBACK 12ESOP  /  Converter Offline Flyback Topology 124kHz ~ 140kHz 12-ESOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - AC DC Converters, Offline Switchers
Mfr Power Integrations
Series TinySwitch®-4
Package Tape & Reel
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 725V
Topology Flyback
Duty Cycle 67%
Frequency - Switching 124kHz ~ 140kHz
Power (Watts) 6 W
Fault Protection Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit
Control Features EN
Temperature Range - Operating -40°C ~ 150°C (TJ)
Package / Case 12-BESOP (0.350", 8.89mm Width), 11 Leads, Exposed Pad
Supplier Device Package 12-ESOP
Mounting SMD (SMT)
Base Product Number TNY284
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 596-1669-2,596-1669-6,TNY284KG-TL-ND,596-1669-1
Standard Package 1,000
Win Source Part Number 1130535-TNY284KG-TL
Ultra Librarian 3D Model Ultra Librarian TNY284KG-TL CAD Model

Description

The TNY284KG-TL is an integrated circuit from Power Integrations that is designed for use in AC-DC converters and offline switchers.

  • Series: TinySwitch-4
  • Package: Tape and Reel
  • Standard Package: 1,000
  • Technology: Surface Mount
  • Power Rating: 6 watts
  • Output: Isolated
  • Internal Switch: Included
  • Voltage Breakdown: 725V
  • Topology: Flyback
  • Duty Cycle: 67 percent
  • Frequency Switching: 124kHz to 140kHz
  • Fault Protection: Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit
  • Control Features: EN
  • Package: 12-BESOP (0.350", 8.89mm Width), 11 Leads, Exposed Pad
  • Operating Temperature: -40°C to 150°C (TJ)
  • Operating Supply Voltage: Not Specified
  • MSL Level: 3 (168 Hours)
  • REACH Status: Unaffected
  • HTSUS: 8542.39.0001
  • Other Names: 596-1669-2, 596-1669-6, TNY284KG-TL-ND, and 596-1669-1
