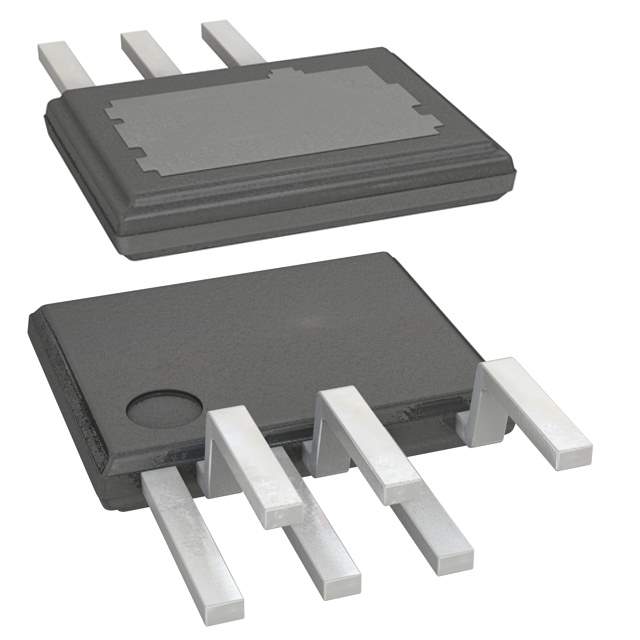

TOP255EN Real Image
Same model may have multiple batches, images only for reference.

TOP255EN

Part No TOP255EN
Manufacturer Power Integrations
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC OFFLINE SWIT PROG OVP 7CESIP
Datasheet
TOP255EN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Power Integrations
Packaging Tube/Rail
Status Active
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 700V
Topology Flyback
Duty Cycle 78%
Frequency - Switching 66kHz, 132kHz
Power (Watts) 81W
Fault Protection Current Limiting, Over Temperature, Over Voltage
Control Operating Temperature -40°C to 150°C (TJ)
Case / Package eSIP-7C
Mounting Through Hole
Win Source Part Number 090685-TOP255EN
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TOP255EN CAD Model

Description

The Power Integrations TOP255EN is a high-performance, energy-efficient integrated circuit that is used in isolated flyback power supplies.

  • Operating Frequencies: Up to 132kHz
  • Duty Cycle: 78%
  • Power: Up to 81W
  • Applications: Set-top boxes, LED lighting, and industrial power supplies
  • Fault Protection: Current limiting, over-temperature, and over-voltage protection
  • Package: eSIP-7C
  • Mounting: Through-hole
