Same model may have multiple batches, images only for reference.

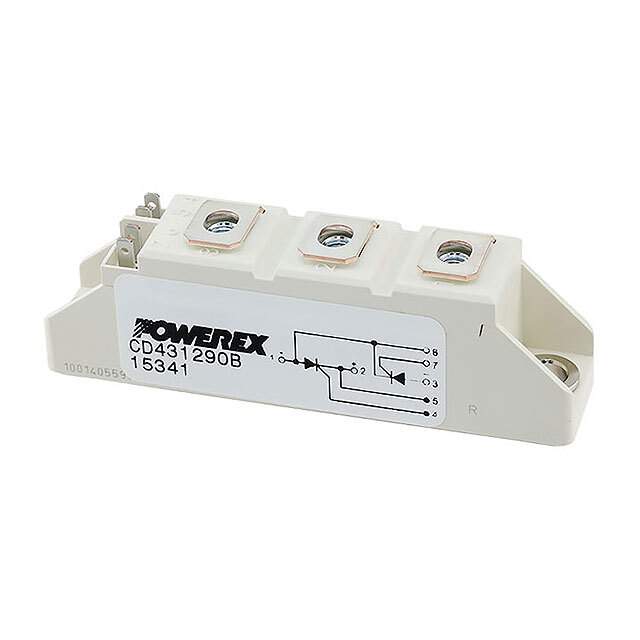

CD431290B Real Image
Same model may have multiple batches, images only for reference.

CD431290B

Part No CD431290B
Manufacturer Powerex Inc.
Catalog SCRs - Single - Modules
Description SCR MOD ISO DUAL 1200V 90A
Datasheet
CD431290B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Powerex Inc.
Packaging Bulk
Status Active
Structure Series Connection - All SCRs
Number of SCRs, Diodes 2 SCRs
Voltage - Off State 1200V
Current - On State (It (AV)) (Max) 95A
Current - On State (It (RMS)) (Max) 150A
Voltage - Gate Trigger (Vgt) (Max) 3V
Current - Gate Trigger (Igt) (Max) 150mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 2000A, 2100A
Current - Hold (Ih) (Max) 250mA
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting Chassis Mount
Dimension POW-R-BLOK Module
Win Source Part Number 1028252-CD431290B
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CD431290B CAD Model

Description

The Powerex Inc. 445326 is a series connection - all SCRs structure with 2 SCRs and is suitable for discrete semiconductor products.

  • Voltage Rating: 1200V
  • Current Rating (It (AV)) (Max): 95A
  • Current Rating (It (RMS)) (Max): 150A
  • Module Dimension: POW-R-BLOK
  • Package: Bulk
  • Mounting Type: Chassis Mount
  • Temperature Range for Operating: -40°C to 125°C (TJ)
