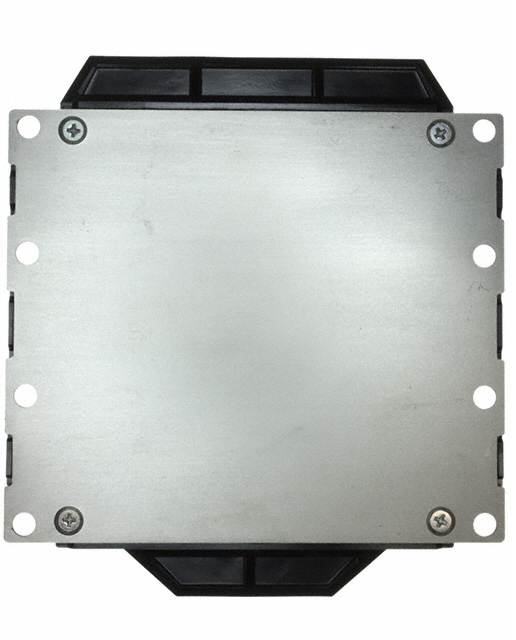

Same model may have multiple batches, images only for reference.
CM1400DU-24NF Powerex Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

CM1400DU-24NF

Part No CM1400DU-24NF
Manufacturer Powerex Inc.
Catalog IGBTs - Modules
Description IGBT MOD 1200V 1400A 3900W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor ProductsTransistorsIGBTsIGBT Modules
Manufacturer Powerex Inc.
Series IGBTMOD?
Packaging Bulk
Part Status Obsolete
Configuration Half Bridge
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 1400 A
Power - Max 3900 W
Vce(on) (Max) @ Vge, Ic 2.5V @ 15V, 1400A
Current - Collector Cutoff (Max) 1 mA
Input Capacitance (Cies) @ Vce 220 nF @ 10 V
Input Standard
NTC Thermistor No
Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package Module
Ultra Librarian 3D Model Ultra Librarian CM1400DU-24NF CAD Model
