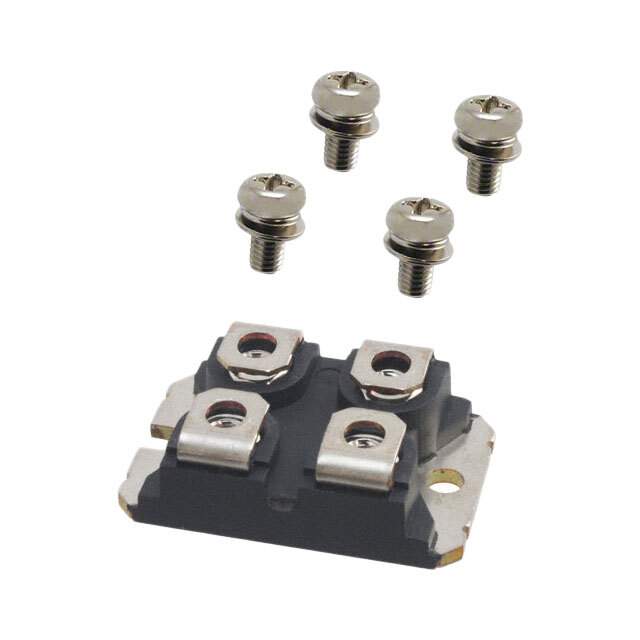

APT100GN120J Real Image
Same model may have multiple batches, images only for reference.

APT100GN120J

Part No APT100GN120J
Manufacturer Microsemi Corporation
Catalog IGBTs - Modules
Description IGBT 1200V 153A 446W SOT227
Datasheet
APT100GN120J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Status Active
IGBT Type Trench Field Stop
Configuration Single
VCEO Maximum Collector-Emitter Breakdown Voltage 1200V
Maximum Current Collector 153A
Maximum Power Dissipation 446W
Collector-emitter saturation voltage(Max) 2.1V @ 15V, 100A
Collector Cut-off Current(Max) 100μA
Input Capacitance (Cies) @ Vce 6.5nF @ 25V
Input Standard
NTC Thermistor No
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Chassis Mount
Case / Package ISOTOP
Win Source Part Number 078483-APT100GN120J
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian APT100GN120J CAD Model

Description

APT100GN120J Description

The APT100GN120J is engineered to deliver exceptional performance and reliability, suitable for cutting-edge electronic applications requiring robust power handling capabilities.

  • Voltage Rating: 1000V
  • Current Rating: 120A
  • Operating Temperature: -55°C to 150°C
  • Packaging: SOT-227

Applications

  • Power Grid Systems
  • Advanced Motor Drives
  • Heavy Duty Industrial Controls
  • Renewable Energy Equipment

Features and Benefits

  • High power density for compact system designs
  • Reliable performance over extended periods
  • Reduced on-loss to maximize efficiency
  • Adaptable to various power system designs

Additional Details: The APT100GN120J stands out in its ability to support high-performance applications with enhanced efficiency and reliability, making it an indispensable component in modern electronic infrastructure.
