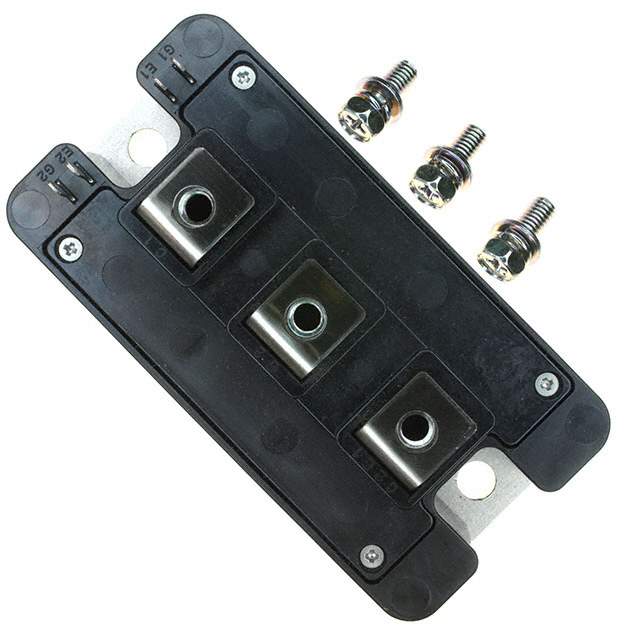

CM150DY-12NF Real Image
Same model may have multiple batches, images only for reference.

CM150DY-12NF

Part No CM150DY-12NF
Manufacturer Powerex Inc.
Catalog IGBTs - Modules
Description IGBT MOD 600V 150A 590W / IGBT Module Half Bridge 600 V 150 A 590 W Chassis Mount Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Modules
Mfr Powerex Inc.
Series IGBTMOD™
Package Bulk
Configuration Half Bridge
Voltage - Collector Emitter Breakdown (Max) 600 V
Current - Collector (Ic) (Max) 150 A
Power - Max 590 W
Vce(on) (Max) @ Vge, Ic 2.2V @ 15V, 150A
Current - Collector Cutoff (Max) 1 mA
Input Capacitance (Cies) @ Vce 23 nF @ 10 V
Input Standard
NTC Thermistor No
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package Module
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Other Names 835-1009,CM150DY12NF
Standard Package 1
Win Source Part Number 1229996-CM150DY-12NF
Ultra Librarian 3D Model Ultra Librarian CM150DY-12NF CAD Model

Description

The CM150DY-12NF is a half bridge configuration IGBT module from Powerex Inc.

  • Configuration: Half Bridge
  • Maximum Power: 590W
  • Collector Emitter Breakdown Voltage: 600V
  • Current Collector: 150A
  • Vce(on): 2.2V
