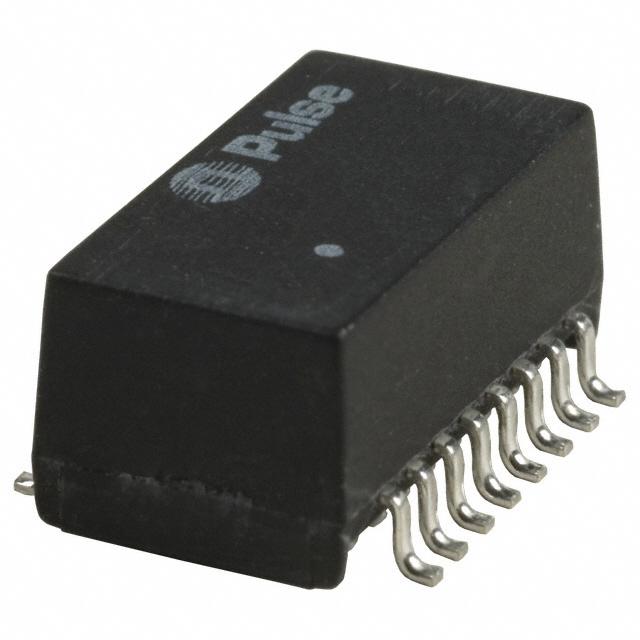

HX1188T Pulse
Same model may have multiple batches, images only for reference.

HX1188T

Part No HX1188T
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1:1 TX 1:1 RX
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tape & Reel
Product Status Obsolete
Transformer Type LAN 10/100 Base-T
Mounting Type Surface Mount
Size / Dimension 0.500" L x 0.280" W (12.70mm x 7.11mm)
Height - Seated (Max) 0.235" (5.97mm)
Temperature Range - Operating -40°C ~ 85°C
Standard Package 600 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 459502-HX1188T
Ultra Librarian 3D Model Ultra Librarian HX1188T CAD Model

Description

The 459502-HX1188T is a pulse transformer designed for use in electronic devices.

  • Category: Transformers, Pulse Transformers
  • Package: Tape and Reel
  • Size/Dimension: 0.500" L x 0.280" W (12.70mm x 7.11mm)
  • Type: LAN 10/100 Base-T
  • Maximum Seated Height: 0.235" (5.97mm)
  • Standard Package: 600 pieces
  • Mounting Type: Surface Mountable
  • Operating Temperature Range: -40°C to 85°C
  • ECCN: EAR99
  • HTSUS Code: 8504.31.2000
  • Manufacturer: Pulse
  • Product Status: Obsolete
  • Availability: 64% in the open market
  • MSL: 1 (unlimited)
