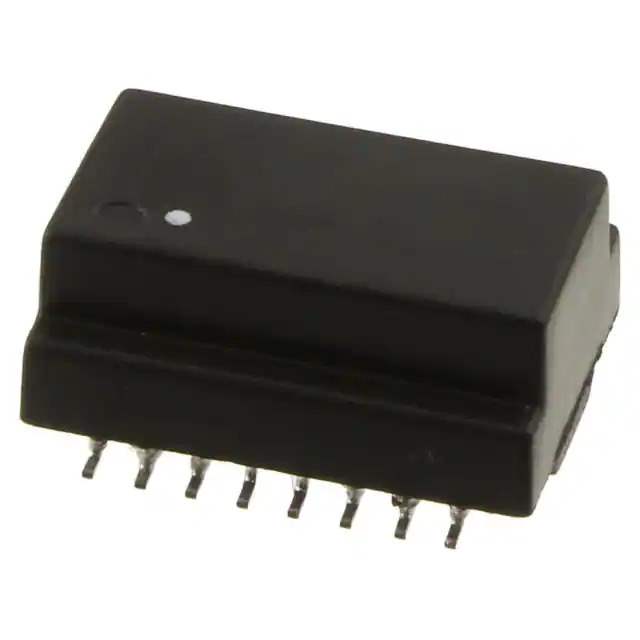

HX1260FNLT Real Image
Same model may have multiple batches, images only for reference.

HX1260FNLT

Part No HX1260FNLT
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1CT:1CT TX 1CT:1CT RX / 350μH LAN 10/100 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet
HX1260FNLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tape & Reel
Product Status Active
Transformer Type LAN 10/100 Base-T
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 0.500" L x 0.358" W (12.70mm x 9.09mm)
Height - Seated (Max) 0.236" (5.99mm)
Temperature Range - Operating -40°C ~ 85°C
Standard Package 600 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 848116-HX1260FNLT
Ultra Librarian 3D Model Ultra Librarian HX1260FNLT CAD Model

Description

The 848116-HX1260FNLT is a pulse transformer designed for use in transformers in pulse applications.

  • Category: Transformers - Pulse Transformers
  • Application: LAN 10/100 Base-T
  • Size: 0.500" L x 0.358" W (12.70mm x 9.09mm)
  • Mounting Type: Surface Mount
  • Inductance: 350µH
  • Operating Temperature: -40°C to 85°C
  • Product Status: Active
  • Manufacturer: Pulse
  • Package: 600 pcs
  • REACH: Unaffected
  • ECCN: EAR99
