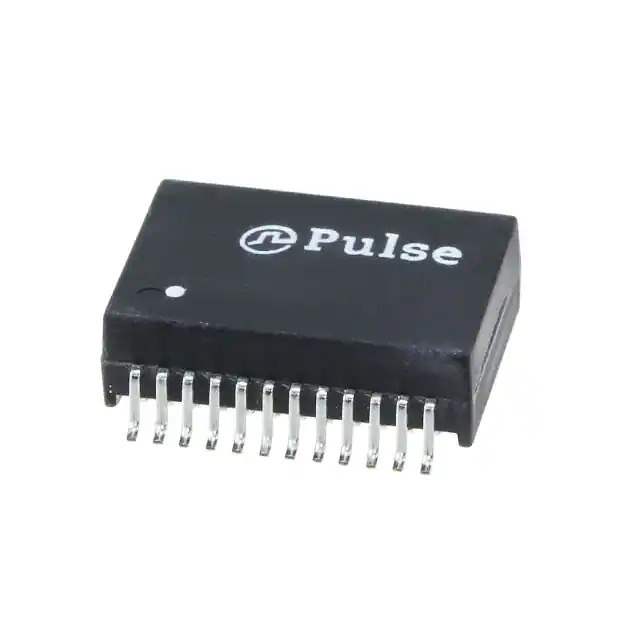

HX6062NL Real Image
Same model may have multiple batches, images only for reference.

HX6062NL

Part No HX6062NL
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1CT:1CT TX/RX
Datasheet
HX6062NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tube
Product Status Active
Transformer Type LAN 10/100/1000 Base-T
Inductance 325µH, 350µH
Mounting Type Surface Mount
Size / Dimension 0.689" L x 0.480" W (17.50mm x 12.20mm)
Height - Seated (Max) 0.225" (5.72mm)
Temperature Range - Operating -40°C ~ 85°C
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 848588-HX6062NL
Ultra Librarian 3D Model Ultra Librarian HX6062NL CAD Model

Description

The 848588-HX6062NL is a pulse transformer designed for use in transformers - pulse transformers category.

  • Category: Transformers - Pulse Transformers
  • Package: Tube
  • Size: 0.689" L x 0.480" W (17.50mm x 12.20mm)
  • Transformer Type: LAN 10/100/1000 Base-T
  • Inductance: 325μH, 350μH
  • Height (Seated): 0.225" (5.72mm)
  • Standard Package Quantity: 25 pcs
  • Mounting Type: Surface Mount
  • Operating Temperature Range: -40°C to 85°C
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8504.31.2000
  • Product Status: Active
  • Manufacturer: Pulse
  • MSL Level: 1 (Unlimited)
  • ET (Volt-Time): Not Specified
