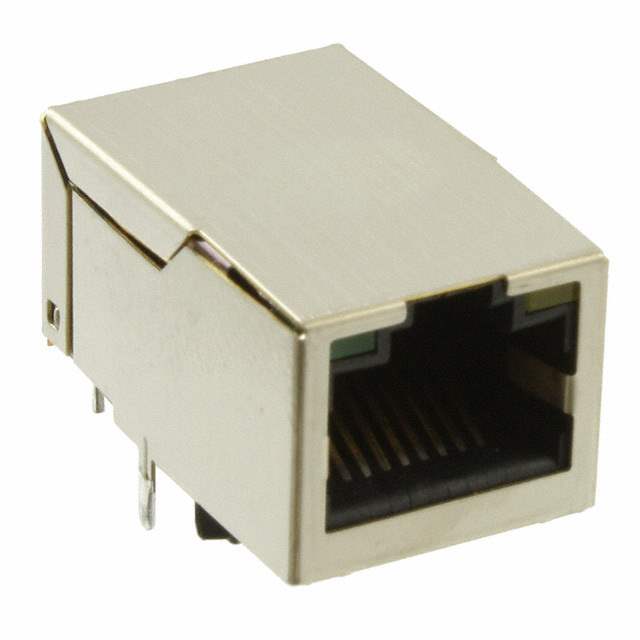

JXR1-0011NL Pulse Electronics
Same model may have multiple batches, images only for reference.

JXR1-0011NL

Part No JXR1-0011NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-TX PCB
Datasheet
JXR1-0011NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1309717-JXR1-0011NL
Category Connectors, Interconnects> Modular Connectors >Modular Connector Jacks With Magnetics
Manufacturer Pulse Electronics
Packaging  Tray
Part Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-TX, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Ultra Librarian 3D Model Ultra Librarian JXR1-0011NL CAD Model

Description

100 Base-TX RJ45 1X1 Tab-Up 8 pin Integrated Magnetics Connector, designed for industrial rated applications and is suitable for reflow solder mounting.
