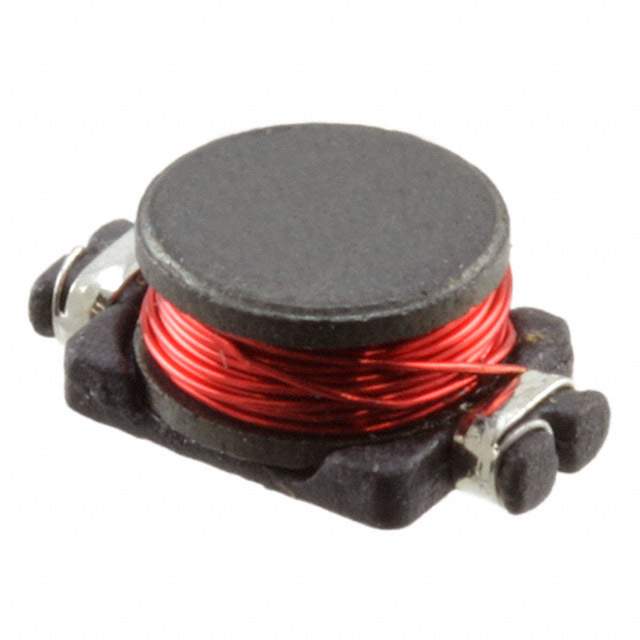

P0770.223NLT

Name: P0770.223NLT
Brand: Pulse
SKU: 1327695
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	P0770.223NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 22UH 700MA 370MOHM SMD / 22 µH Unshielded Wirewound Inductor 700 mA 370mOhm Max Nonstandard
Datasheet	P0770.223NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Pulse Electronics
Packaging	Reel - TR
Type	Wirewound
Inductance	22 µH
Tolerance	±20%
Current Rating (Amps)	700 mA
Current - Saturation (Isat)	700mA
Shielding	Unshielded
DC Resistance (DCR)	370mOhm Max
Temperature Range - Operating	-40°C ~ 130°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Max)	0.115" (2.92mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	P0770.223NLT-ND,553-P0770.223NLTDKR,553-P0770.223NLTCT,553-P0770.223NLTTR
Standard Package	2,500
Win Source Part Number	1327695-P0770.223NLT
Ultra Librarian 3D Model	Ultra Librarian P0770.223NLT CAD Model

Alternative Products

Description

The Pulse Electronics 1327695-P0770.223NLT inductor is a wirewound component used in electronic devices.

Shielding: Unshielded
Inductance: 22 µH
Tolerance: ±20%
Size: 0.260" L x 0.175" W (6.60mm x 4.45mm)
Height: 0.115" (2.92mm) when seated
DC Resistance (DCR): 370mOhm Max
Operating Temperature Range: -40°C ~ 130°C
Mounting Type: Surface Mountable
Current Rating: 700 mA
RoHS Compliant: Yes
Case/Package: Nonstandard
