Same model may have multiple batches, images only for reference.

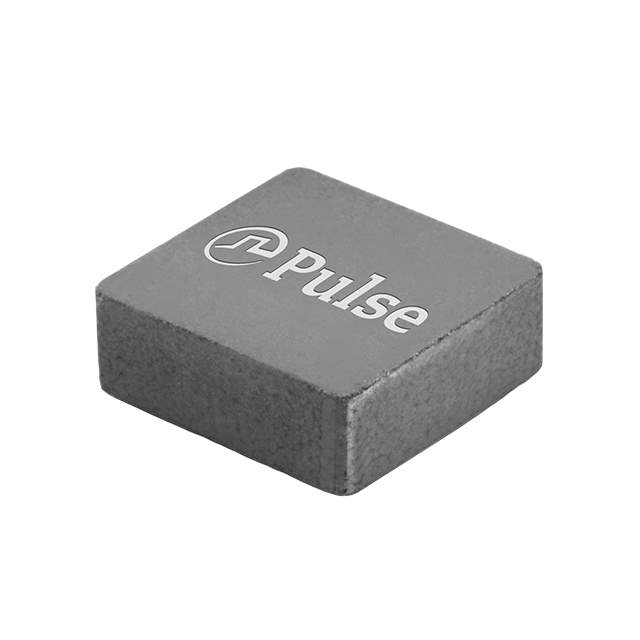

PA5002.122NLT

Name: PA5002.122NLT
Brand: Pulse
SKU: 1007152
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PA5002.122NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 1.2UH 9.4A 16.3MOHM SM / 1.2 µH Shielded Molded Inductor 9.4 A 16.3mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Pulse Electronics Power
Series	PA5002.XXXNLT
Package	Tape & Reel
Type	Molded
Material - Core	Ferrite
Inductance	1.2 µH
Tolerance	±20%
Current Rating (Amps)	9.4 A
Current - Saturation (Isat)	14A
Shielding	Shielded
DC Resistance (DCR)	16.3mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.217" L x 0.209" W (5.50mm x 5.30mm)
Height - Seated (Max)	0.083" (2.10mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	553-4078-2,553-4078-1,-1536-PA5002.122NLTCT,553-4078-6
Standard Package	3,000
Win Source Part Number	1007152-PA5002.122NLT
Ultra Librarian 3D Model	Ultra Librarian PA5002.122NLT CAD Model

Alternative Products

Description

The 1007152-PA5002.122NLT is a fixed inductor designed for use in electronic circuits. It is a surface mount device with a height of 0.083 inches. The inductor is part of the PA5002.XXXNLT series and comes in tape and reel packaging. The inductor is shielded and has an inductance of 1.2 μH. The device has a DC resistance of 16.3mOhm Max and operates in a temperature range of -40°C to 125°C. The dimensions of the device are 0.217 inches in length and 0.209 inches in width. The device is manufactured by Pulse Electronics Power and has an ECCN rating of EAR99.
