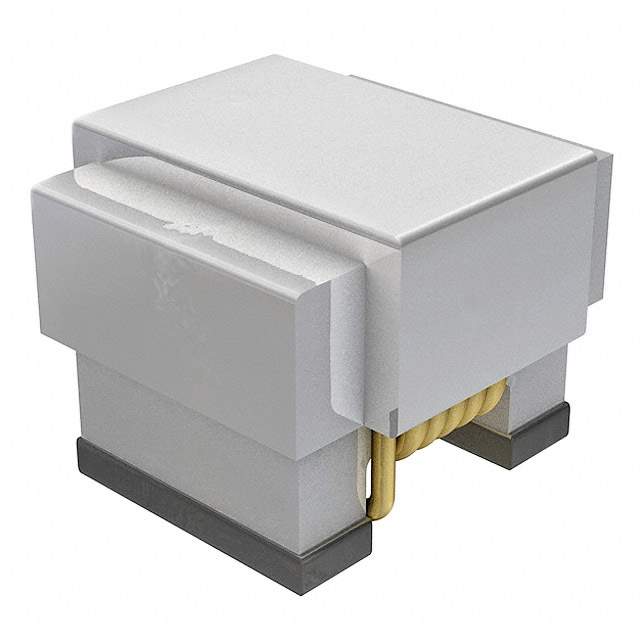

PE-0805CD271GTT

Name: PE-0805CD271GTT
Brand: Pulse
SKU: 1327571
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	PE-0805CD271GTT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 269NH 350MA 1 OHM SMD / 269 nH Unshielded Drum Core, Wirewound Inductor 350 mA 1Ohm Max 0805 (2012 Metric)
Datasheet	PE-0805CD271GTT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Pulse Electronics
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ceramic
Inductance	269 nH
Tolerance	±2%
Current Rating (Amps)	350 mA
Shielding	Unshielded
DC Resistance (DCR)	1Ohm Max
Q @ Freq	45 @ 250MHz
Frequency - Self Resonant	650MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 MHz
Mounting	Surface Mount
Case / Package	0805 (2012 Metric)
Supplier Device Package	0805 (2012 Metric)
Size / Dimension	0.090" L x 0.066" W (2.29mm x 1.68mm)
Height - Seated (Max)	0.062" (1.58mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Standard Package	2,000
Win Source Part Number	1327571-PE-0805CD271GTT
Ultra Librarian 3D Model	Ultra Librarian PE-0805CD271GTT CAD Model

Alternative Products

Description

The fixed inductor from Pulse Electronics is a drum core, wirewound type inductor that is unshielded.

Size/Dimension: 0.090" L x 0.066" W (2.29mm x 1.68mm)
Inductance: 269 nH
Maximum Seated Height: 0.062" (1.58mm)
Standard Package: 2,000
Mounting Type: Surface Mount
Tolerance: ±2%
DC Resistance (DCR): 1Ohm Max
