Same model may have multiple batches, images only for reference.

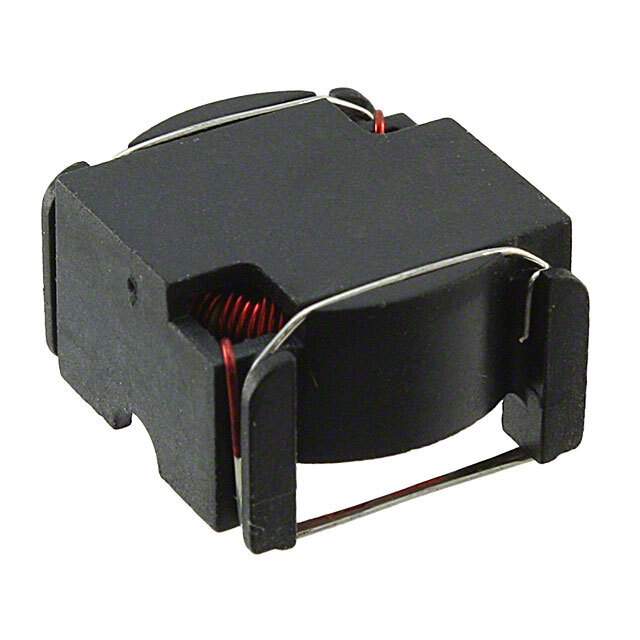

PE-53933SNL Real Image
Same model may have multiple batches, images only for reference.

PE-53933SNL

Part No PE-53933SNL
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 24UH 2.74A 70 MOHM SMD / Tested and recommended by National Semiconductor Base material meets flammability requirements of UL 94V-0
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Pulse Electronics Power
Packaging Bulk
Type Toroidal
Inductance 24μH
Tolerance ±20%
Current Rating (Amps) 2.74A
Shielding Shielded
DC Resistance (DCR) 70mOhm
Temperature Range - Operating -40°C ~ 130°C
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.620" L x 0.600" W (15.75mm x 15.24mm)
Height - Seated (Maximum) 0.390" (9.91mm)
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807848-PE-53933SNL
Ultra Librarian 3D Model Ultra Librarian PE-53933SNL CAD Model

Description

The Pulse Electronics Power 807848-PE-53933SNL is a toroidal type inductor.

  • Type: Toroidal
  • Shielding: Yes
  • Inductance: 24μH, ±20%
  • Packaging: Bulk
  • Manufacturer Pack: Nonstandard
  • Maximum Seated Height: 0.390"
  • Dimension: 0.620" L x 0.600" W
  • Mounting Type: Surface Mount
  • Current Rating: 2.74A
